Dwg to skp lines are jagged

render

#1

Hello

My first time importing AutoCAD file to SU Pro 2018. AutoCAD file sent to me by mapmaking company. FYI I don’t have AutoCAD.

Having issue with curved lines appearing jagged in SU.

Image 1: Photo taken of original plan with iPhone - clean lines

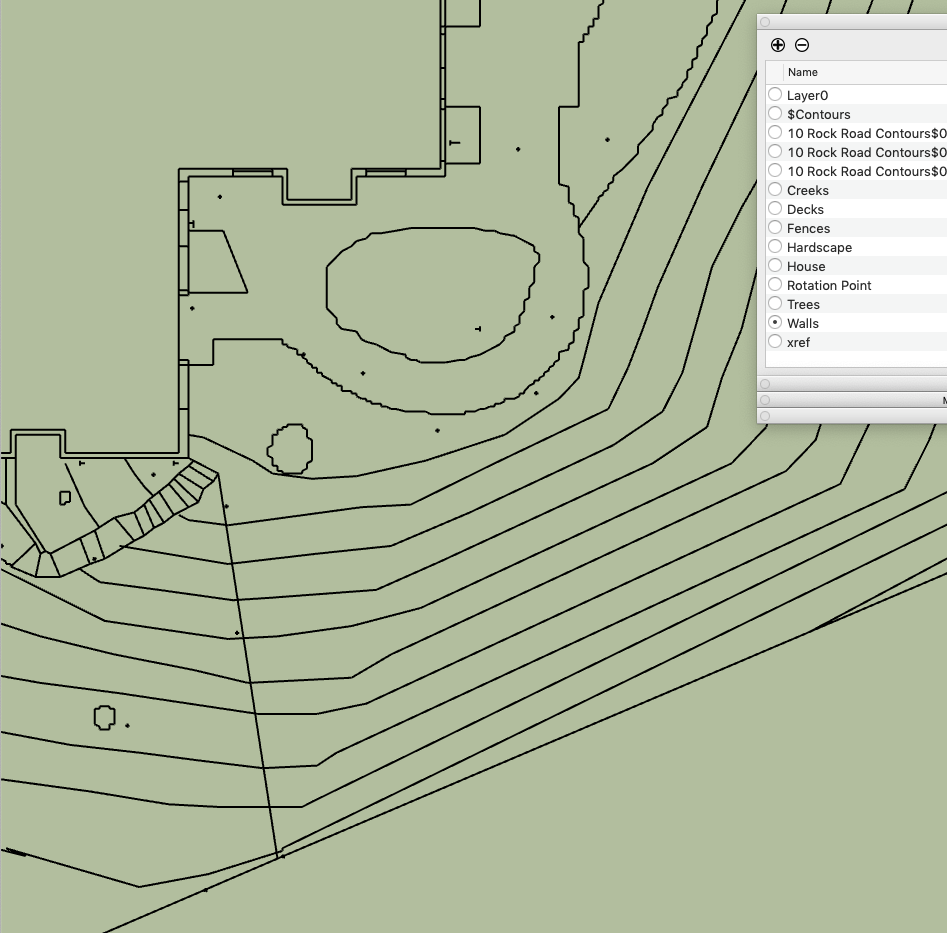

Image 2: Screen shot - jagged lines in SU

dog file also uploaded if anyone has a fix for this issue? Again, I don’t have AutoCAD on my computer.

Thanks for your help.
Daniel

10 Rock Road.dwg (536.3 KB)


#2

Uncheck “preserve drawing origin” in the import options dialog. It seems that because the entities come in far from the model origin with that checked, they become distorted…


#3

Hi Ian

That did it.

Thanks a million.


#4

Glad to hear that.

There were a similar topic a few weeks ago I think, my memory fails on the title though.


#5

By default, SketchUp has just one layer, the Default Layer0
The DWG file you were handed brings along 11 more layers.

SketchUp’s layer system does not isolate geometry. Layers in SU only control visibility.
SU’s sticky geometry will meld into an unmanageable mass, regardless of its layer assignment.

SketchUp utilizes a ‘container’ system comprised of Groups and Components to isolate geometry.
A Group or Component (aka groups) may be assigned to a new layer to control their visibility as needed.

However, the primitive raw geometry (Edges and Faces) within them must remain assigned to Default Layer0.
Thus, the Default Layer0 must remain the Active Layer to avoid creating geometry assigned to other layers.
Moving the Active Layer away from Layer0 as shown in your screenshot is a path to modeling mayhem.

See these resources:

Importing CAD files — SketchUp Help
https://help.sketchup.com/en/how-model-efficiently-using-existing-2d-and-3d-sources#importing_cad_files


Components


Layers


#6

Hi Geo

Been meaning to get back to you. Thanks for this important info.

Daniel
