Another curved compound surface fill

brainfarth · March 30, 2019, 4:49pm

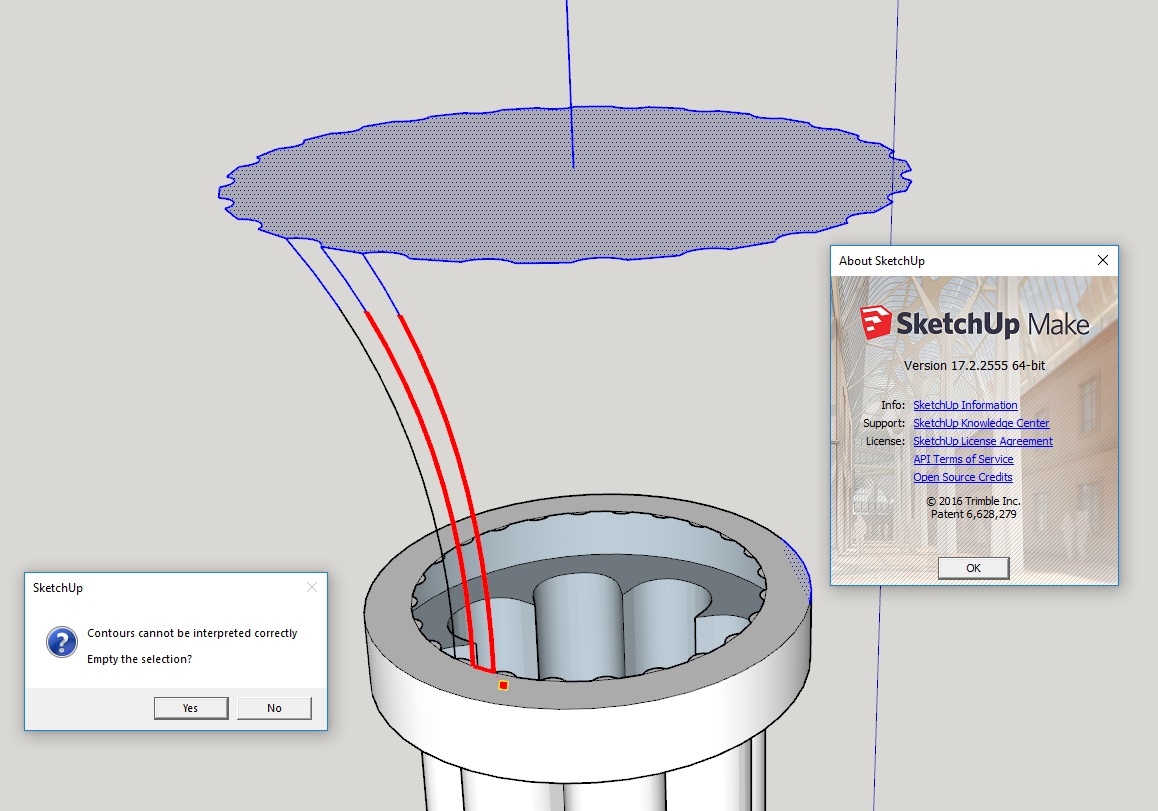

I’m having trouble filling in some compound curves. I’ve tried to extrude them straight up then scaling, but then I cant get the curve I want in the middle. And Curviloft doesnt want anything to do with frame I have drawn. Is there another plugin that fits my needs?

sesame.skp (1.4 MB)

mics_54 · March 30, 2019, 5:50pm

worked for me using curviloft skinning

I did one flute at a time then selected both flutes and rotated them. I selected two curves then evoked the skinning tool and selected the top and bottom profiles of a single flute

GSTUDIOS · March 30, 2019, 5:52pm

Curviloft skin contours works -

tuna1957 · March 30, 2019, 6:09pm

Three times the charm… CurviLoft on the concave section then the flat section. Copy - Array then selected the Curviloft created groups and exploded.

brainfarth · March 30, 2019, 6:24pm

Thanks for the assistance. I see that my problem was not selecting the correct curviloft button. Once I used skin contour, it went pretty easily.

mics_54 · March 30, 2019, 6:25pm

I use curviloft tools so rarely each time is a brand new lesson.

brainfarth · March 30, 2019, 10:30pm

I finished the drawing. The grandpa wanted a bunch of signs for his grandson, so I’m going to 3d print them for the party. I’m sharing the file with whoever wants it, and I’ll be posting it on Thingiverse soon enough.

And since it’s too large of a file, I’m hosting it:
sesame street sign
Oh yeah… It is broken up for easier printing.

mics_54 · March 30, 2019, 10:47pm

I am curious…why is it so large?

brainfarth · March 30, 2019, 10:50pm

I drew it without measurements, so it’s it a bit larger than normal. Also, I ran into zero issues with sketchup getting goofy over too small of a dimension or intersections. I have a 10" scaled down version around the ZYX center.

mics_54 · March 30, 2019, 10:51pm

Just checking…thought that might be the reason and you forgot to scale it back down.

Box · March 31, 2019, 2:26am

Don’t forget that Curviloft has more than one possible shape.
CurviShape

brainfarth · March 31, 2019, 3:25am

I printed all the parts and modified the original drawing a little. You dont usually see all the little problems until you try to print them.

http://weldingbuzz.com/sesame.skb

brainfarth · March 31, 2019, 3:26am

That’s pretty cool. I’m going to see what messes I can make with that extension.

mics_54 · April 5, 2019, 3:55pm

I did try to use curviloft in that manner using the op’s profiles and it wouldn’t work. I didn’t attempt to find out why.

Box · April 6, 2019, 2:00am

Not sure what to tell you, I didn’t bother using the OPs model as I knew the option I was showing wouldn’t form the shape he wanted.
But I downloaded it and it works fine for me.
Curvi3

mics_54 · April 6, 2019, 8:40pm

Im sure it was something i was doing wrong I use it so rarely
