Trying to create a 1/4" rounder edge inside of a wood panel. Check image below

advice
follow-me-tool
woodworking
workbox
theater

#1

Hey everyone,

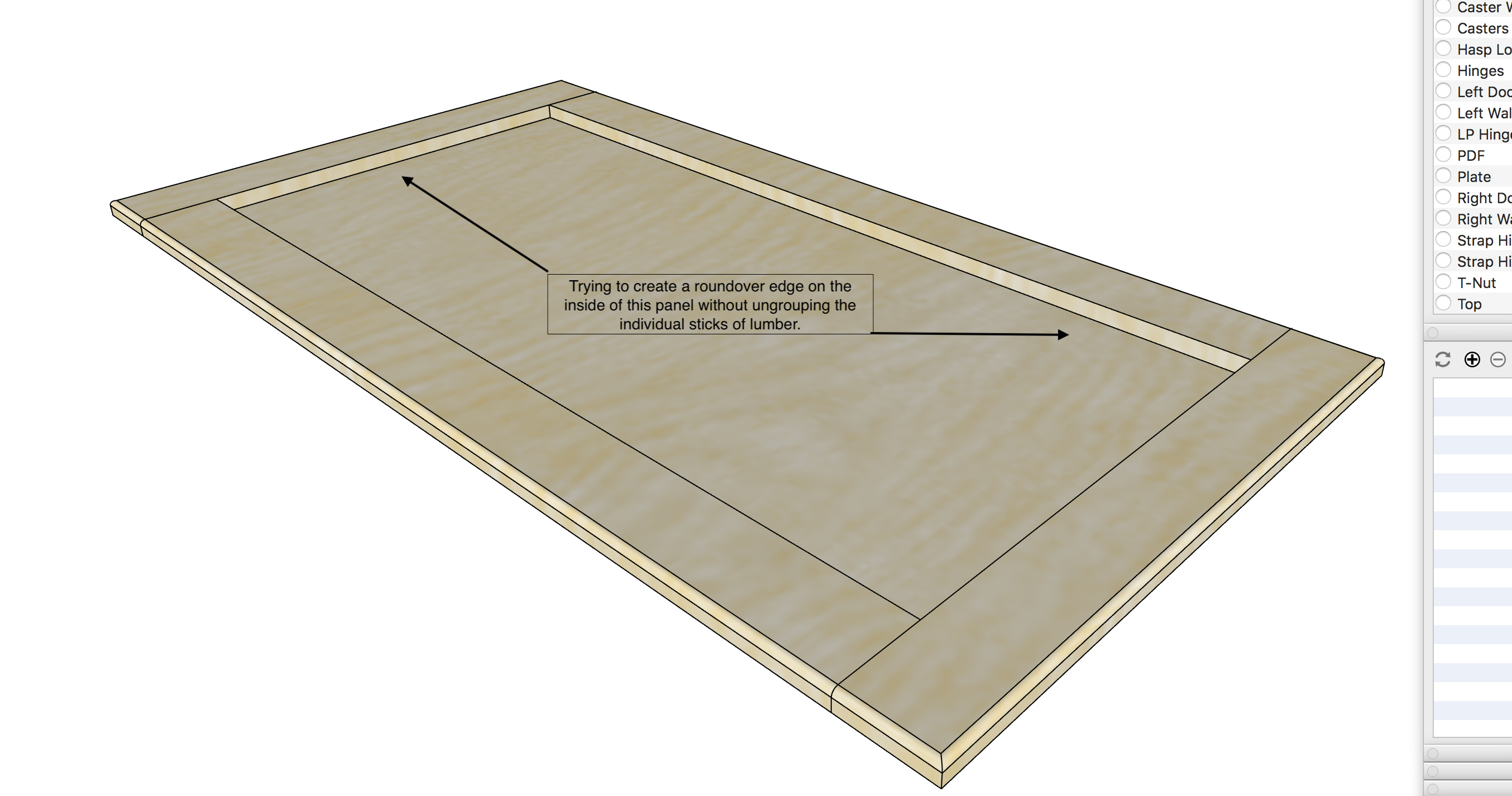

Im building a road box for a theater and they want to round over the whole box. Im creating a simple rendered model for presentation and was curious was the best way to round over the inside of the panels. I have shown only the top panel of the workbox.

I’ve used the follow me tool for the outside edges but I was curious of an efficient manner to create the same effect on the inside of the show frame.

Thanks for taking to time to read and/or solve this.

Love this forum.


#2

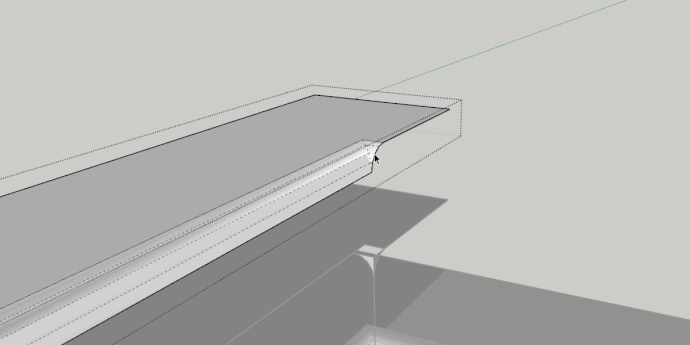

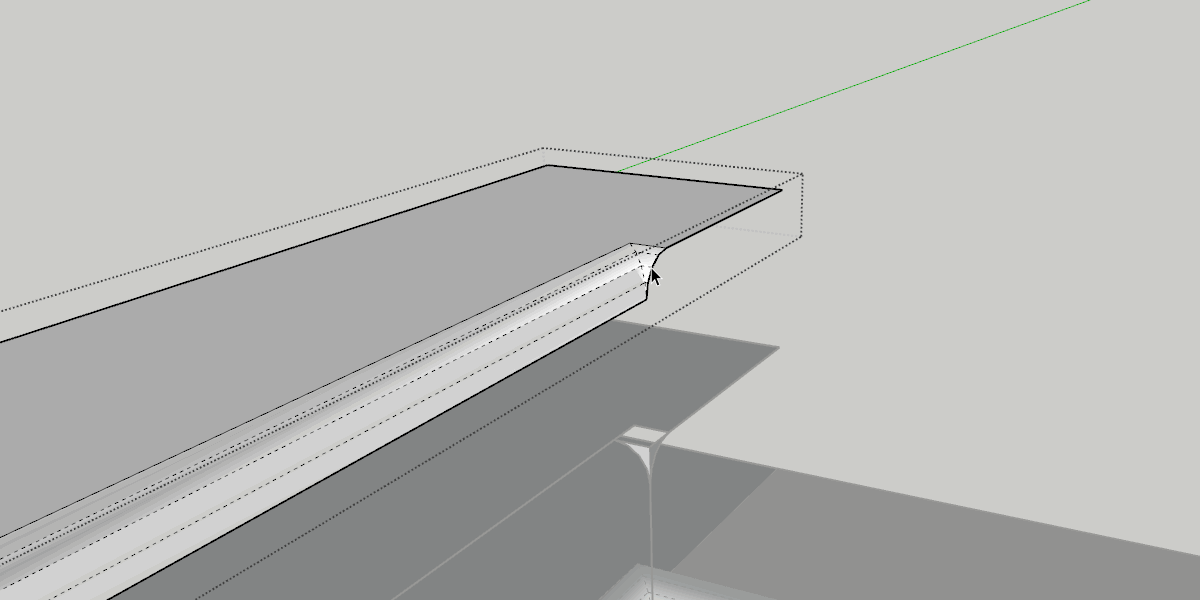

Something like this?


#3

YES, Exactly!


#4

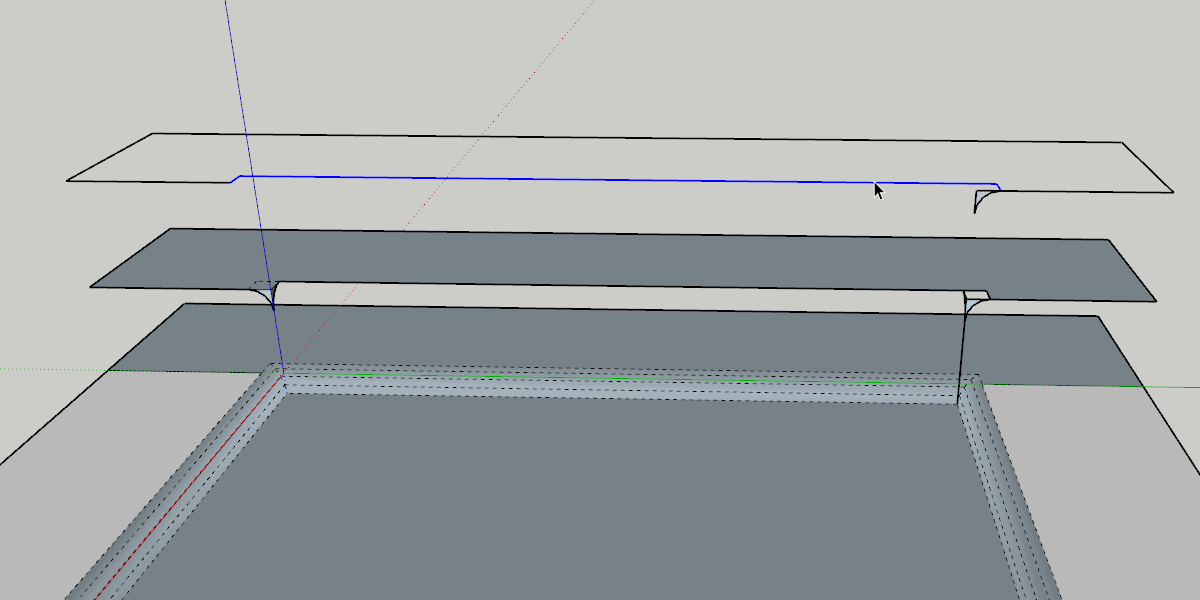

And for the other part:


#5

I never thought o extrude the line segment only. Absolutely genius. I’ll have to note this for future drafting. I absolutely need that mirror tool. Thank you very much for this. You grouped the one side before you mirrored it correct?


#6

Yes… for the groups.
For extrude a line I used plugin “Abedeo Push line”, and for the mirror the plugin “Curic Mirror”.


#7

Alright. As you can tell, I am a beginner at sketchup. Thank you for the lesson. Much appreciated.


#8

Have you seen this extension? it’s an update to a classic called RoundCorner what allows you to select and edge, or edges and then set a radius. https://extensions.sketchup.com/en/content/fredocorner
Fredo’s plugins require a companion plugin here: https://extensions.sketchup.com/en/content/libfredo6


#9

No I haven’t. This is great. Thank you sir.


#10

If you want to use the RoundCorner plugin, then this would be one of the ways to draw your desired model.


#11

Is that the way this “road box” will be constructed? Or is this just for a presentation?
