Modeling Lathe Parts in SketchUp Live!

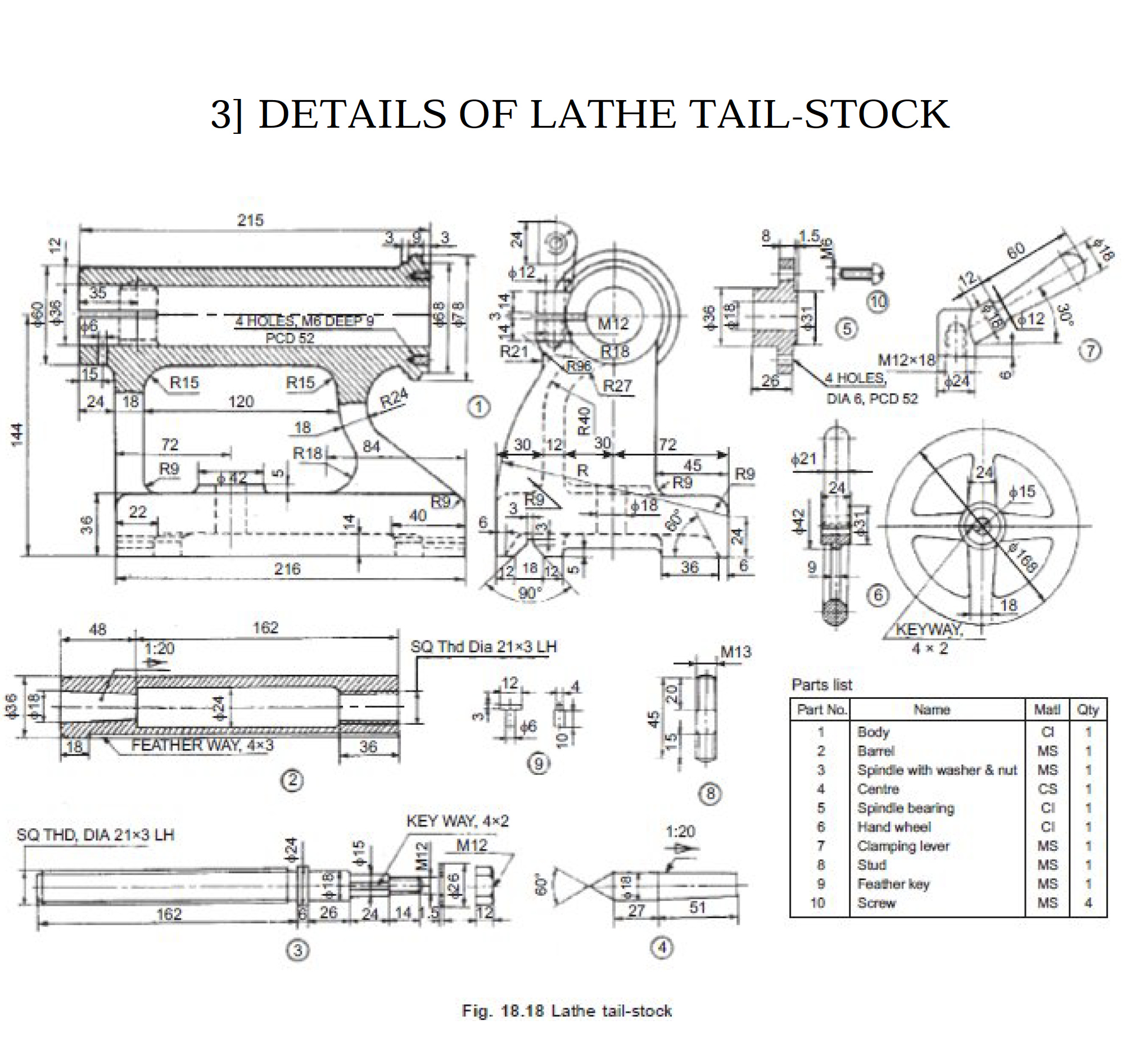

Hi all! we are doing another Model Along! Today we are going to model the parts for some lathe pieces! Images below. Download and be ready to model!

2020-05-27T18:00:00Z

Join us on YouTube, Facebook, or Twitch!




2 Likes

3 Likes

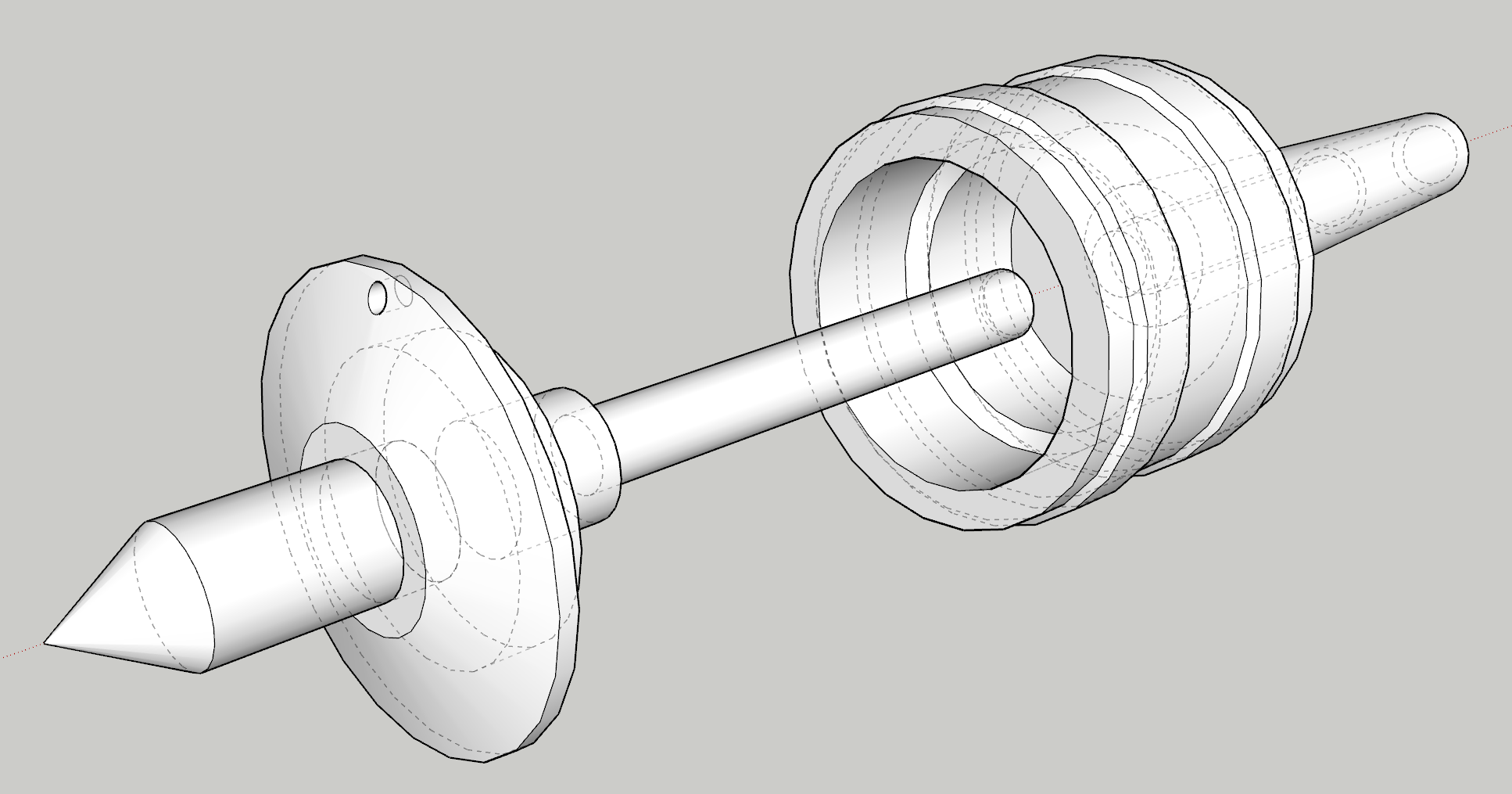

I did all the dimensions correctly (except the MORSE thing) and got stuck here:

2 Likes

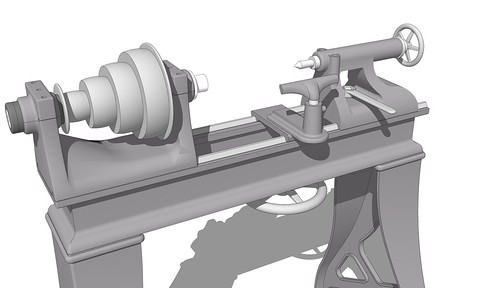

The base looks something like this but more curvy!!

A lath with two rails on the ways.

2 Likes

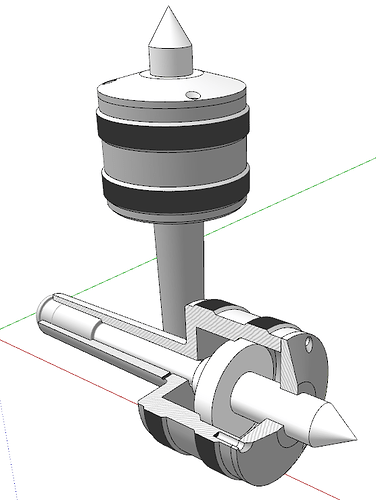

I’m at a loss… How did you get that 90º section cut with hatching?

I’m at a loss… How did you get that 90º section cut with hatching?

Hi Brad. If I told you I’d have to… :smiley:

Don’t think so hard about it. I made that copy of the component unique and then used Eneroth Solid Tools to trim it with a big block. I used the same block to trim a copy of the cover, too. The hatching is just the diagonal sketchy pattern texture that is included in SketchUp.

FWIW, I left the knurling (which is still too small) as components separate from the larger part. I hid the surfaces in the larger part where the knurling goes. That makes it rather trivial to go back and revise the knurling if I decide to revisit the thing and change that detail.

1 Like
