Version 1.3.2 - 07.11.2021
- Enabled subscription and permanent licensing.
- The License tab of the Global Settings now displays the license type.
1 Like
Version 1.3.3 - 01.11.2023
- Enabled layer control integration with the Medeek Project extension.
1 Like
Hello,
Thank you for your hard work. Are you planning to add some Europlug standard to your extension? USA and UK is fine, but AC power plugs are different and it would be nice to cover that topic. Have a look how many countries use round plugs and sockets Mains electricity by country - Wikipedia
Type D (BS 546 5 A)
Type E (French) CEE 7/6 plug & CEE 7/5 socket, 16A
Type F (“Schuko”) CEE 7/4 plug & CEE 7/3 socket, 16A
CEE 7/7 plug, (combines earthing methods of Type E & Type F)
If you would like more info, just let me know. Best wishes
Michal
1 Like
If I get enough requests for the European standard I will work on including it in the plugin.
1 Like
Version 1.3.4 - 06.13.2023
- Enabled switches, outlets and lights to be inserted into “component” walls.
Previously electrical fixtures could only be inserted into walls that were “groups”, with this update the wall assemblies can be either groups or components.
This update per customer request.
P.S.
I will still need to update the other misc. electrical fixtures (ie. panels, low voltage, safety, heaters, vents, low voltage panels etc…)
1 Like
Version 1.3.4b - 06.15.2023
- Enabled all other electrical fixtures for “component” walls.
1 Like
Version 1.3.5 - 09.29.2023
- Added six additional dimmer switch combinations.
This update per customer request.
1 Like
Version 1.3.6 - 10.04.2023

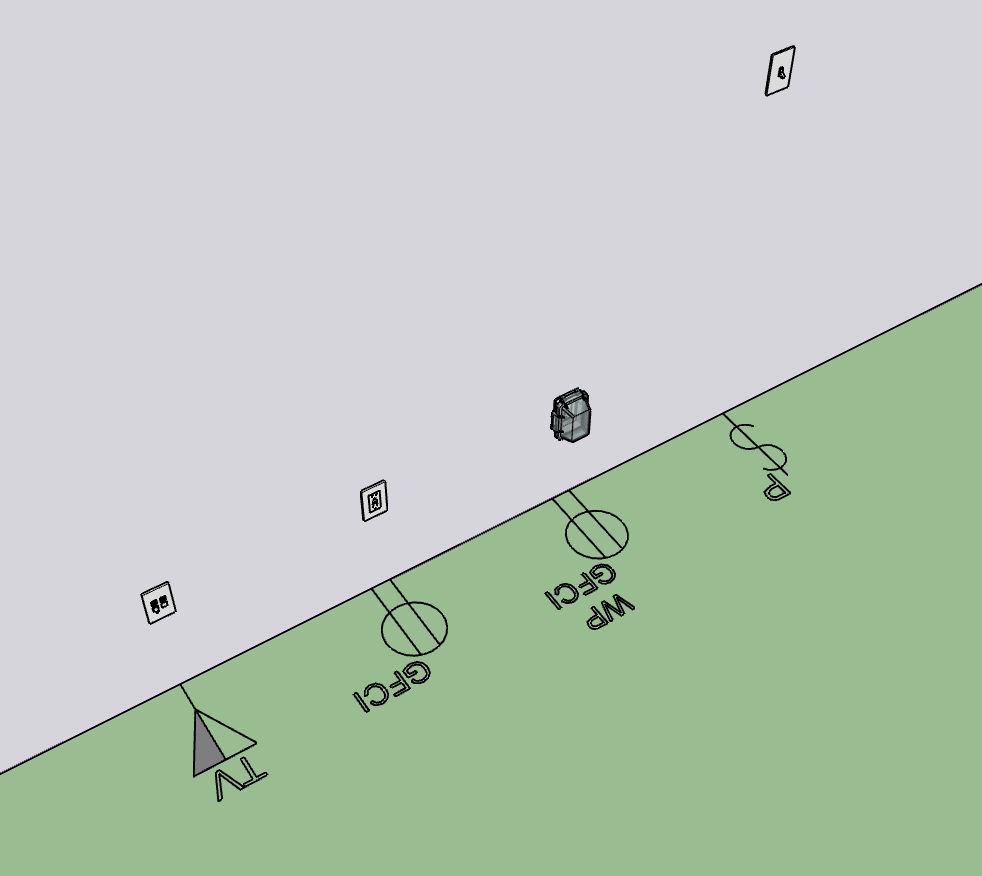

- Added an offset parameter (advanced options) for outlets which allows the symbol and label to be offset from the wall.

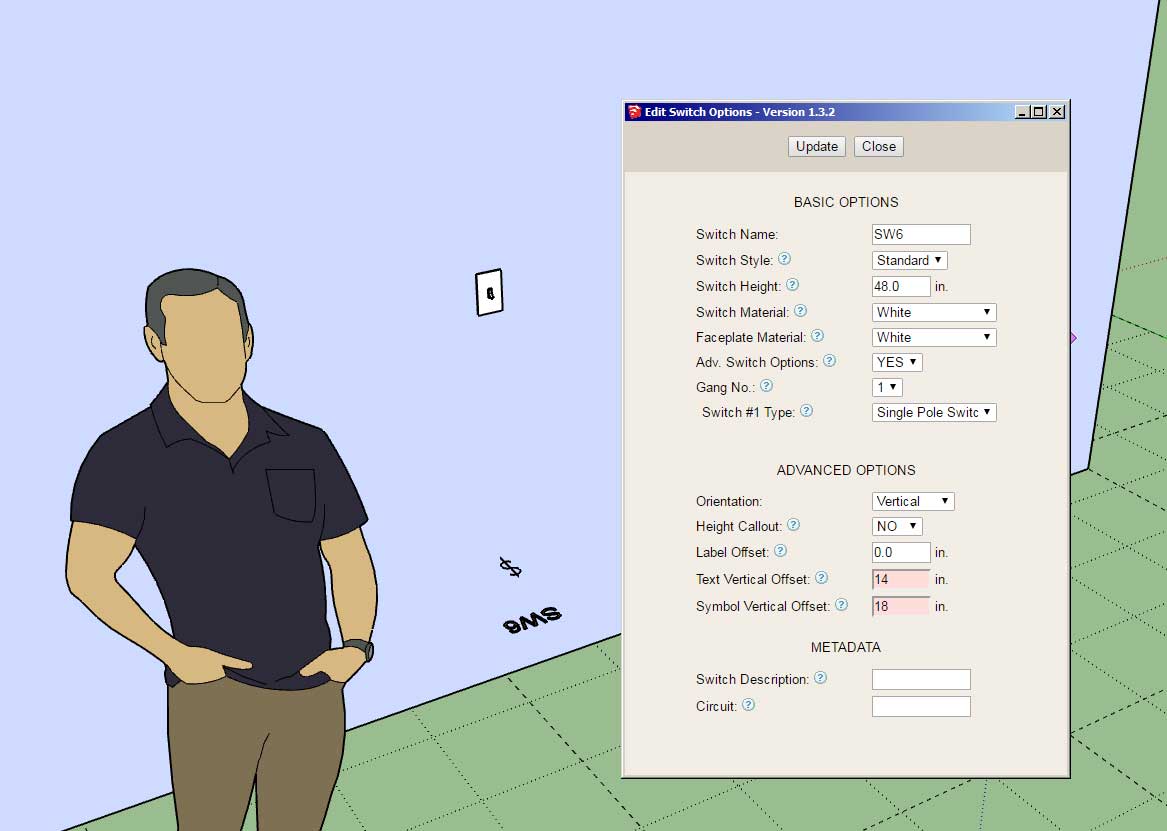

- Added two additional advanced parameters for vertically offsetting text and symbols for switches and outlets.
The text and symbol vertical offsets are driven by the global settings however these two parameters can now be adjusted separately for each individual outlet or switch.
This update is per customer request.
1 Like
Version 1.3.7 - 10.14.2023
- Added four timer switch combinations (Leviton VPT24-1PZ).
Added per customer request.
1 Like
Version 1.3.8 - 11.22.2023
- Added two additional parameters for annotation formatting.
- Added the “Regen Electrical” function to the primary toolbar, enabled regeneration for all electrical fixtures.
- Moved the “Draw Safety Device” tool to the secondary toolbar.
1 Like
Version 1.3.8b - 11.23.2023
- Added the “Symbol Text Scale” parameter for scaling superscript of 2D electrical symbols.
This update per customer request.
With this update one can scale the 2D symbol superscript of the electrical symbols and make them more visible and legible when exporting to Layout, PDFs or paper.
2 Likes
Tutorial 6 - Annotation Formatting (9:47 min.)
Version 1.3.9 - 01.08.2024
- Updated and improved the license verification module.
- Disabled redundant logging to improve plugin performance.
1 Like
As always, you’re doing amazing work. Thanks for all you do.
2 Likes
Version 1.4.0 - 01.12.2024
- Added a “PIPE” shape to the wire module for electrical conduit.
- Added an additional parameter for custom wires (conduits/pipes) within the library: Wall Thickness.
- Added standard PVC (Schedule 40) electrical conduit sizes into the custom wire library.
Note, that previous custom wire libraries will not be compatible with this latest update. If you have an extensive library already established please contact me directly with step-by-step instructions on how to bring an older wire library into this latest version of the plugin.
The dimensions for the OD, wall thickness and bend radius were taken directly from CANTEX and JM Eagle literature, and should match exactly the standard specs for SCH40 PVC in the American and Canadian markets.
1 Like
Aaaand here comes a Medeek plumbing extension ;D. Thanks Nathan!
1 Like
I’m looking for good models of electrical pvc components in the warehouse like of the electrical component below:
I’m not finding very many.
Itd be great if the floor extension was finished before starting a plumbing extension.
2 Likes
Trust me the Floor Extension will be out well before a plumbing extension is even conceptually devised.
2 Likes
Version 1.4.1 - 01.31.2024
- Improved the serial number verification logic within the License tab of the Global Settings.
- Updated the javascript logic within the License tab of the Global Settings.
- Added standard PVC (Schedule 80) electrical conduit sizes into the custom wire library.
- Fixed a minor bug with the edit wire profile logic of the wire module.
It turns out the outer diameter and bend radius of schedule 80 conduit is the same as schedule 40, only the wall thickness is different. I learn something new everyday.
1 Like
