Extrude curved face so I can print it on 3d printer

jdelany58 · October 3, 2017, 5:54am

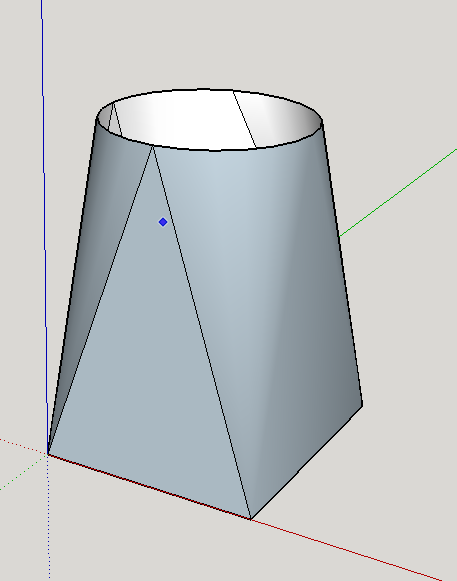

I would like to 3d print a transition coupling from a square opening to a round opening. I have successfully drawn it but I now need to add depth for the walls. I can extrude the flat sections but not the curved sections. Any suggestions??
Thanks

filibis · October 3, 2017, 6:05am

Check this plugin: JointPushPull Interactive.

jdelany58 · October 3, 2017, 9:23am

That worked great.
Thanks so much for the help

Cotty · October 3, 2017, 9:37am

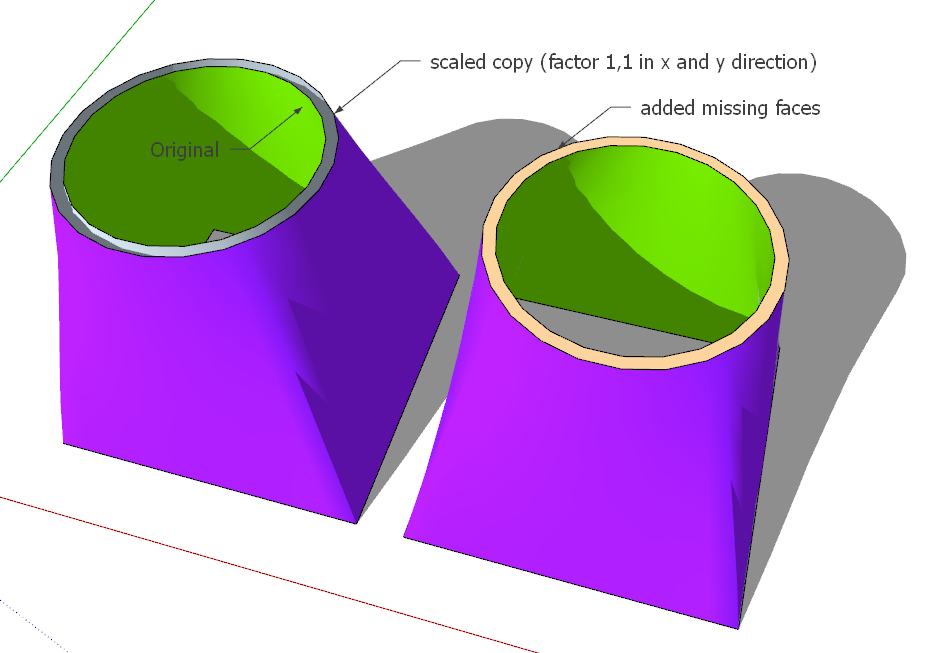

If you want to try it without a plugin, this would be one possible way…

system · January 3, 2018, 1:37am

This topic was automatically closed 91 days after the last reply. New replies are no longer allowed.
