Diagonal Dimension and change of dimension after move


#1

Hi,

How I can get an diagonal dimension and point it on the right position?
The dimension jump always back in vertical or horizontal! Is there any trick?

Why the dimension change, when I move the dimension and how I can avoid it?


#2

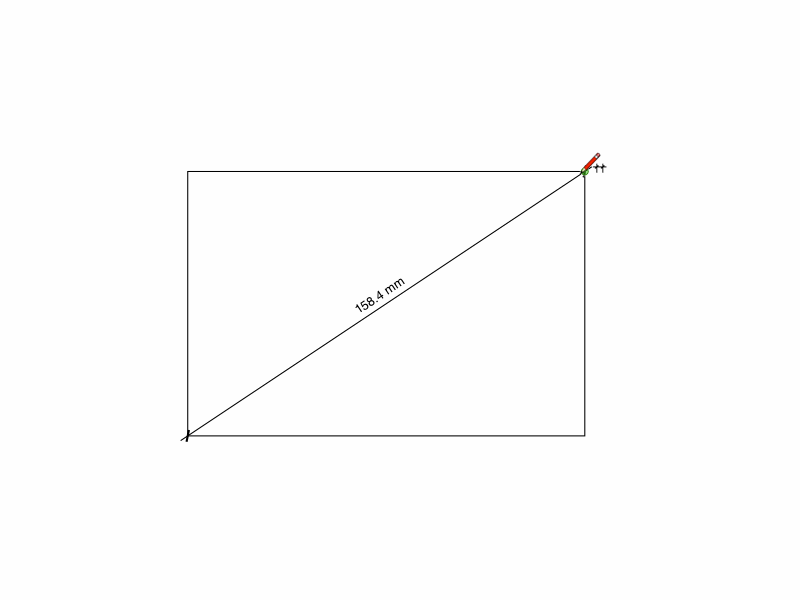

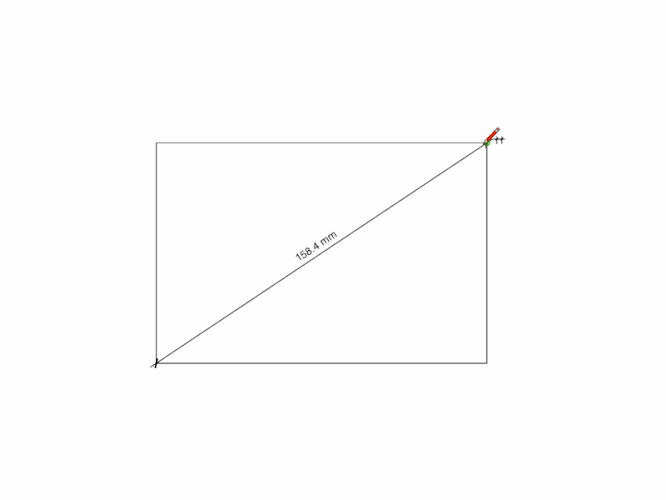

It depends where your mouse is pointing. The same tool gives you horizontal, vertical and diagonal dimensioning, depending on where the mouse is. Move the mouse slowly around your two points in a big circle and you’ll see where it changes from horizontal to diagonal to vertical dimensions.


#3

Thats right. It works. But if you have a long uneven line its not easy. But thanks for your great help!!


#4

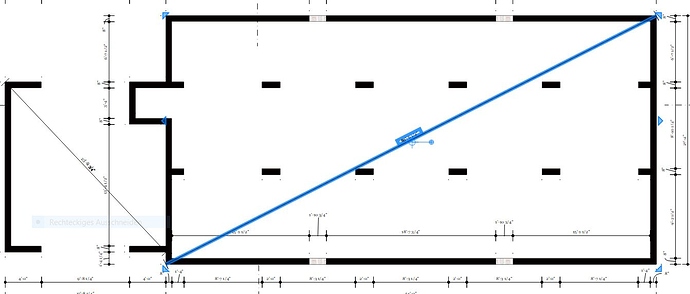

Also keep the mouse cursor near the right hand end of the dimension line as you move it and you can keep it diagonal almost everywhere.
