Changing the line style of a line

#1

Continuing the discussion from Changing line's color:

Hi Everyone,

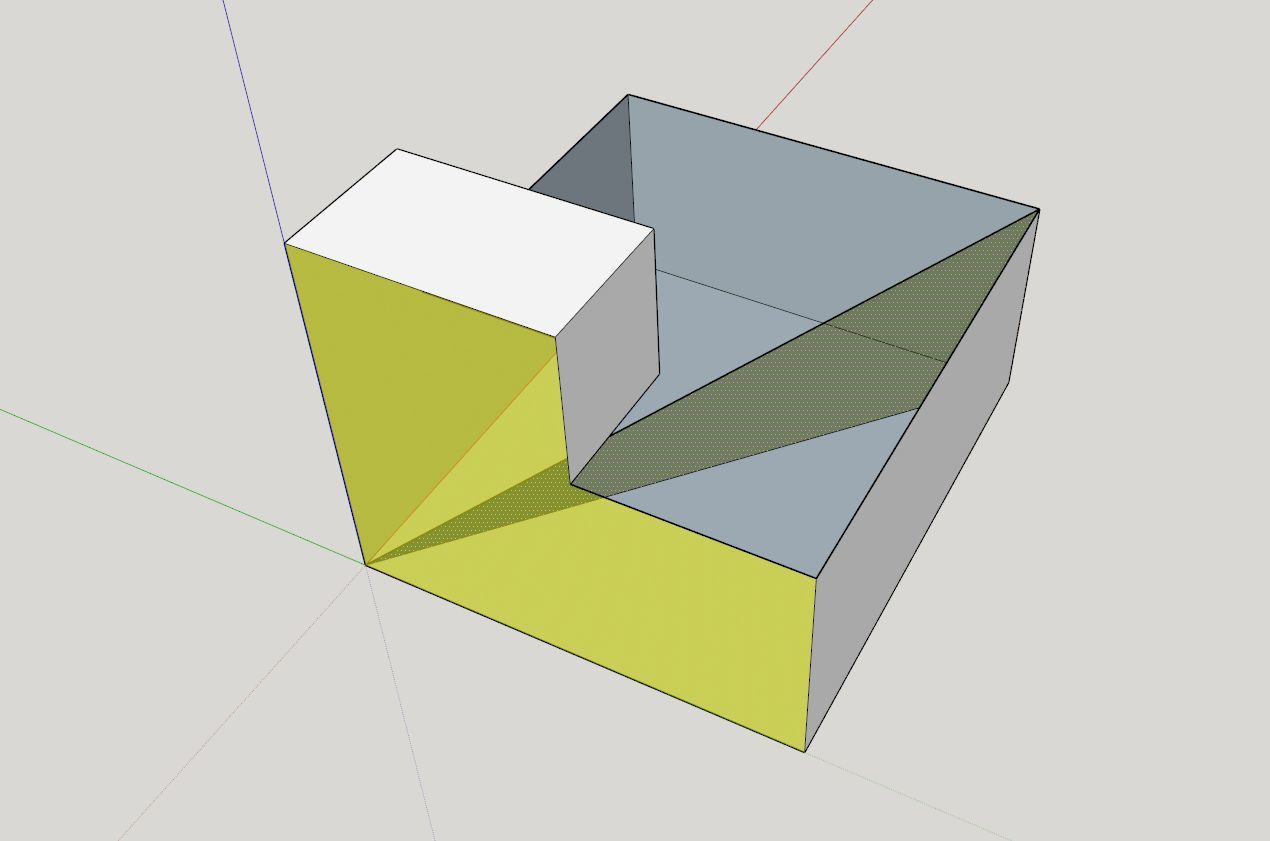

I am new to sketchup 2016. How can I just change the thickness, colour and line style of the green triangle only? Thanks.

green triangle.jpg1270x841 46.2 KB

#2

You can’t change the line style or thickness of individual edges. You can paint edges with materials or colors and set edge color by material in Styles Edit.

#3

Thx Dave. Actually I am a high school teacher and I want to teach students 3D figures with different views. Sometimes I want to stress some lines (eg make it dotted) for illustration purpose. Sketchup is a very good software which I am look for. Will it be possible in the future to highlight individual lines? Thx

#4

I don’t know what the future holds for that sort of thing. Those who might won’t tell. The best you can do for now is display the edges in color.

#5

u can change the color, thickness and line style with 2d tool extension

#6

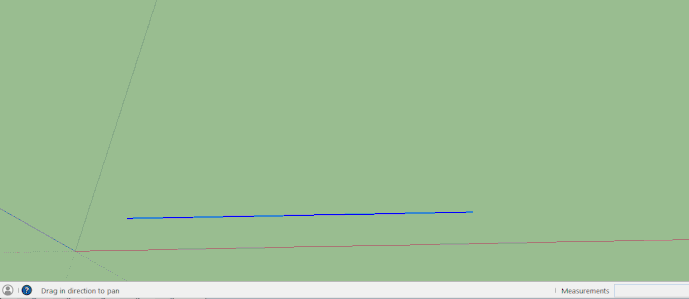

line.gif1236x536 293 KB
this way u can change the color style and thickness with 2d tool extension

#7

where do you get the 2d tool extension plugin?

#8

Sketchucation’s Extension Store.

#9

i couldn’t find it.

Bill Brandley
CTS Teacher
County Central High School
Box 390
504, 4th Avenue
403.485.2223
Vulcan, Alberta T0L 2B0

#10

You don’t see this when you click on my link?

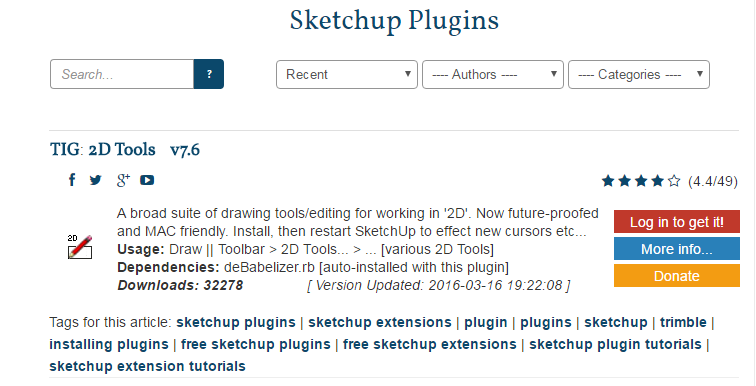

Screenshot - 12_19_2016 , 1_29_17 PM.png756x386 28.2 KB

#11

I do now… sorry and thanks

Bill Brandley
CTS Teacher
County Central High School
Box 390
504, 4th Avenue
403.485.2223
Vulcan, Alberta T0L 2B0
