Push/Extrude to connect rectangular and round shape

extrude
pushpull

#1

Dear experts,

I am designing an air duct adapter between rectangular bower fan nozzle and a round pipe. How do I connect the 2 shapes? I tried to cover individual sections from inside and outside using the Sandbox tool, however this does not get correctly interpreted after the export into .stl…
I am expecting something like intelligent Pull/Extrude along the lines which connect the edges.

Thanks beforehand,

Victor


#2

You can do it manually but Curviloft is your friend here.


#3

Great Tool! Many thanks for your help!!!


#4

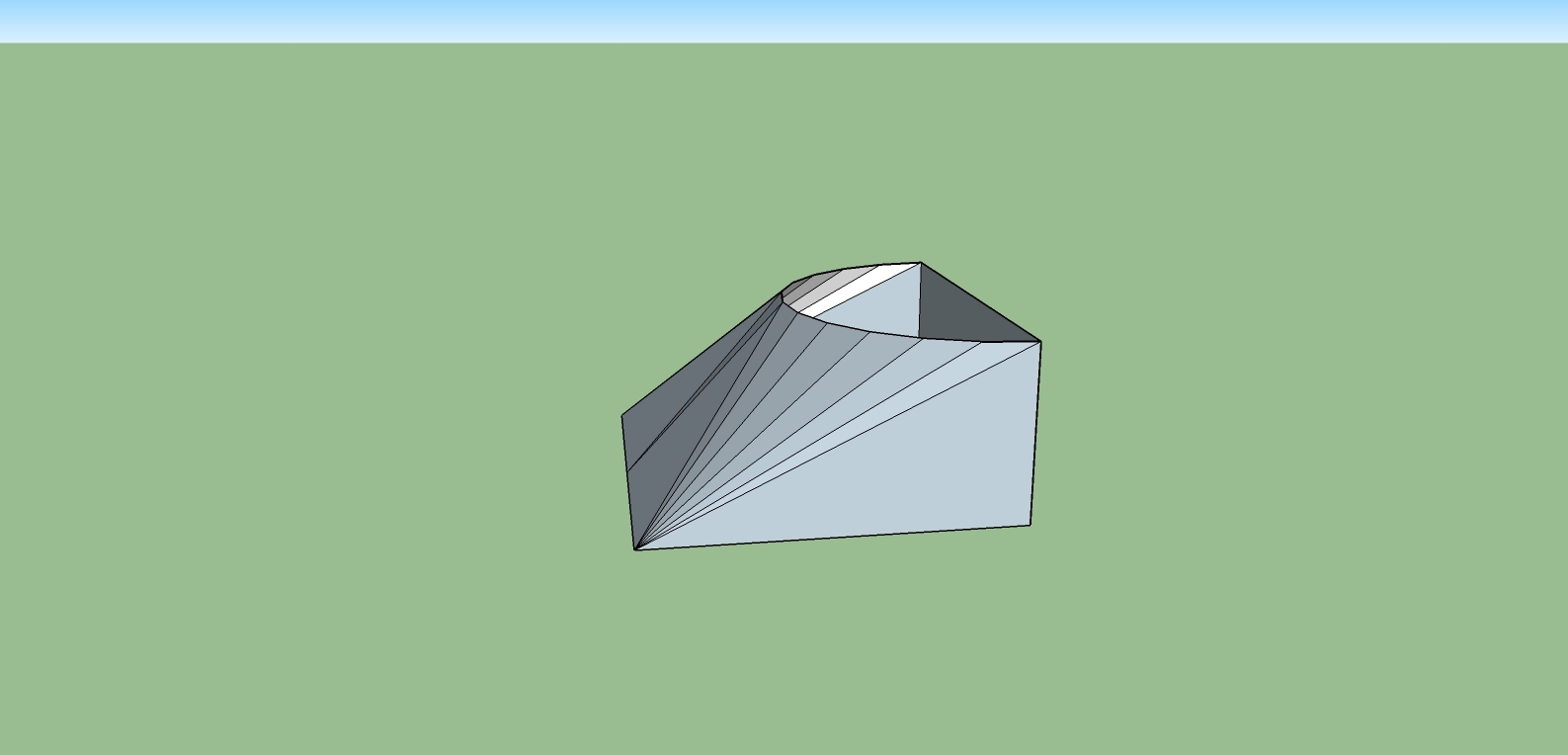

Just like you see in the store, drawn plan view then pull up. Attached is 1/2 to no particular dimensions.
Check out the engineering tool box they have some ANSI compliant items


I think tis can be developed so if you have break you can buld on site:slight_smile:
