How to extract the 3 isometric views with the highest possible quality?

SketchUp
1

Hello all:

Please notice the web page that I am designing:

Robertson Measurement Tool

It will allow the users to determine by themselves the factibility of (or lack thereof) the infamous Single Bullet Theory/Magic Bullet Theory or SBT/MBT. The user should be allowed to perform zooming with no quality loss and therefore I will be using the SVG format. What you see up there is a mock-up, those files are JPEG taken from my 3ds Max model. However, I decided to use my SketchUp model of Dealey Plaza. See screenshots (still JPEG) below.

SketchUp Front View
SketchUp Front View1629×752 337 KB

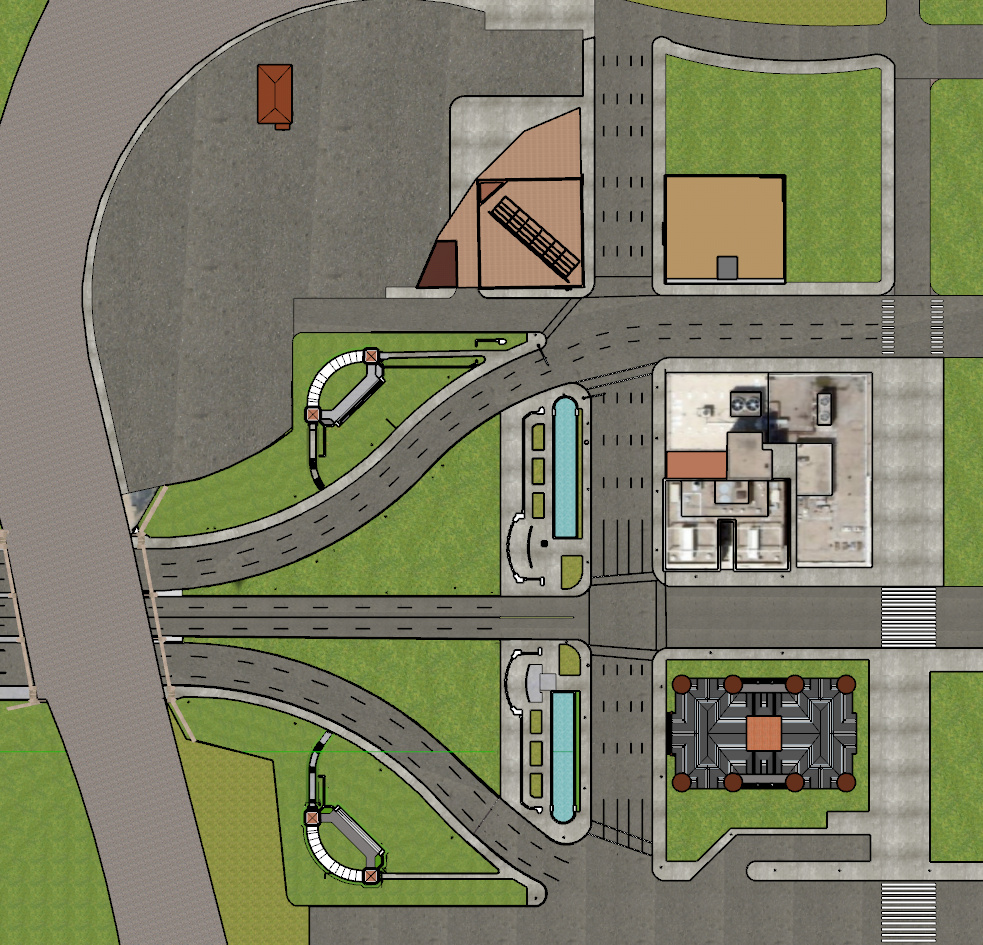

SketchUp Top View
SketchUp Top View983×945 476 KB

How do I extract the views in SVG format? At the minimum I need the 3 isometric/orthogonal views, but some perspective views will be useful as well.

TIA,

-Ramon F. Herrera
JFK Numbers

2

For a failed way to do this, using 3ds Max, see here:

How to export from 3ds Max the 3 isometric views to a vector (SVG) based file?

The Autodesk employee himself designated his suggestion as a hack.

-Ramon F. Herrera
JFK Numbers

TSBD Front View
TSBD Front View999×860 68.7 KB
TSBD Top View
TSBD Top View932×902 59.2 KB

3

If anybody is interested, this is the SketchUp model:

http://www.dealey-plaza.org/this-government-as-promised/full_plaza/SketchUp/

All the material produced by my little 1-person operation immediately goes into the public domain. Feel free to grab anything from the project’s web site.

http://www.dealey-plaza.org/this-government-as-promised/

-Ramon
JFK Numbers

DP
DP1071×715 216 KB
