How do I bring this image down in the 3d model to be on top of each other?

SketchUp
1

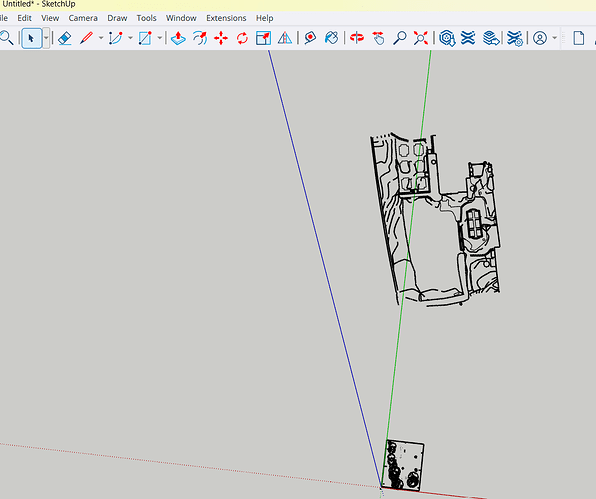

How do i bring this image down in the 3d model to be on top of each other?

<div data-theme-tiles="1">

[sketchupwhitehouse.skp|attachment](upload://565YS6nxm6gcEOo281iTJEEccJf.skp) (668.6 KB)
<div data-theme-tiles="1">

![skp|596x499](upload://6o7WFawEtbXZVfkd50Wyk4zKcHk.png)


</div>

</div>

Thanks

2

sketchupwhitehouse.skp (668.6 KB)

skp
skp1117×937 42.6 KB

hi, not sure what you tried to do with all the divs and code snippets, but this is a markdown forum, it doesn’t work.

after removing the ``` in your post, we should see the things in mine.

3

now, your dwg has elements that have a z value higher than 0

Capture d’écran 2024-05-14 à 10.13.03
Capture d’écran 2024-05-14 à 10.13.03343×788 2.94 KB

it’s a 2 step solution in sketchup.

  • step 1, get the extension “Eneroth flatten to plane”. it’s free

  • step 2, turn ALL the tags visible (one is currently hidden), enter the dwg’s component, select all, and go to extension / eneroth flatten to plane.

  • step 3 (I lied) Rejoice

Capture d’écran 2024-05-14 à 10.16.04
Capture d’écran 2024-05-14 à 10.16.041138×725 32.7 KB

sketchupwhitehouse.skp (657.9 KB)

there are similar solutions in autocad, freecad, powercadd and all the other cads, but I don’t know them.

4

in autocad and bricscad, use the “flatten” command

5

I’m a newbie as you can tell, yea I’m sure why the previous message wasn’t formatted correctly. Hope fully this comes out okay.

Thank you so much I manage to bring it down to earth :joy: :joy:

6

Without an extension:
Go to top view, set camera to parallel projection.
Export to DWG to full scale
Import
