Collada file flicker when rendering in gazebo and MeshLab

collada

#1

I have created a cuboid with an Image on one face.

I have tried to export this object as collada file with multiple export settings (Edge on/off, Render Both faces, Triangulate all faces, etc).

The exported file is flickering in Gazebo Physics simulator. Also the white color disappears.

I tried to load the collada file in MeshLab. It also shows flicker and no white color

[Here] is a similar collada file.

I need to load this file correctly in Gazebo. Please help me to achieve this.


#2

You have to delete the face of the box, because it overlaps with the image.


#3

Hi,
Thanks for replying.

The image does not spread to the whole face. It is enclosed with in the face.
What should I do to preserve the white color?


#4

First, get rid of that face of the box. Then make your texture as you wish in your photo editor.
But it has a white, just delete the face.


#5

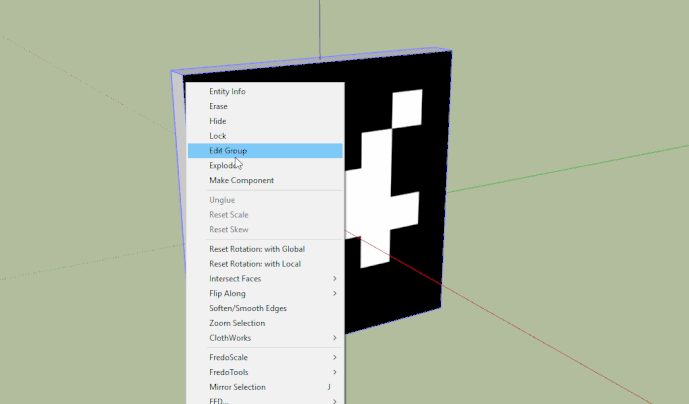

Thanks for the clear illustration.

I actually need a white border around the image so that its visibility is enhanced. Sometimes the algorithm has difficulty in recognizing the marker when not enclosed in a white border.

If I am deleting the face it looks hollow.


#6

You have at least 2 options:

  1. Prepare your photo in Photoshop/Gimp, and import again.

#7

The first option seems best to me because it allows me to control dimension of the tapered (boundary part) and the image size.

However, I am not able to select the edges after I delete the face.
How do you select those edges. And thanks for bearing with me.

EDIT
I managed to do it. However I am not able to export the white color of the box. It appears grayish. Any hints on how to resolve the color.


#8

It is not necessary to select the edges, just draw another line over one of them. It will create that face, and then use Offset.


#9

I just updated my last post.
Appearance is not flickering now. Only that the white color should load now.


#10

I exported as a OBJ file (with OBJexporter plugin)


#11

I cannot get the colors to appear in MeshLab. I specifically need to use the collada file format as eventually the model has to work with Gazebo physics simulator.
I found some info here that suggests it can be a material naming issue but I don’t understand much.


#12

I exported the file into DAE, then I import it back to SketchUp. The colors are visible, so maybe MeshLab has a problem, but as far as I know it is no longer in development.
Did you try to see the DAE file directly in Gazebo?


#13

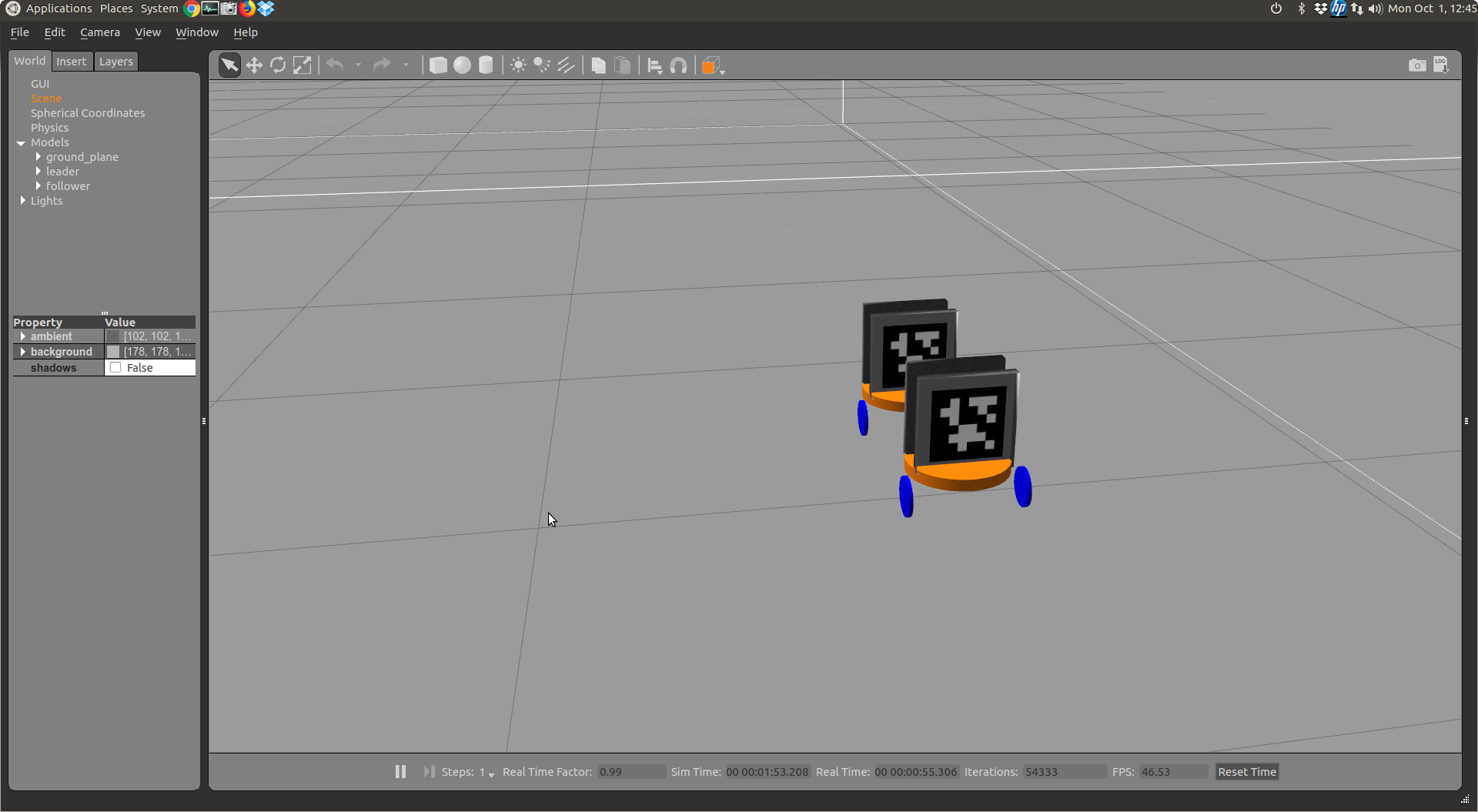

Yes. The image I posted earlier is from gazebo. Here’s another one.


#14

http://gazebosim.org/tutorials?tut=guided_b3

  • Custom Shapes: The Add button allows you to import custom meshes to from a link in the model. It currently supports COLLADA (.dae), 3D Systems (.stl), Wavefront (.obj) and W3C SVG (.svg) files.

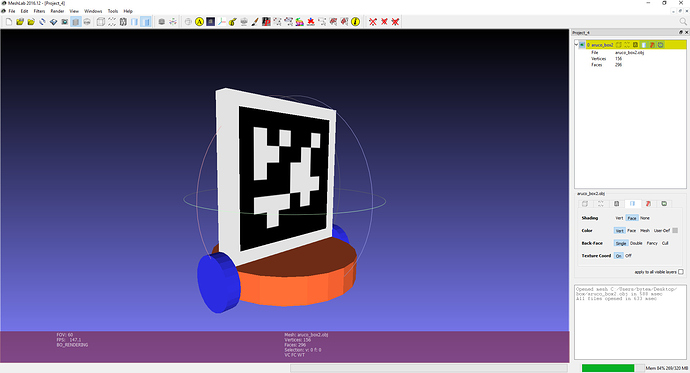

And OBJ looks fine in MeshLab.


#15

Ohh… I didn’t know gazebo supports Wavefront (.obj). My bad. I will try converting the model into obj file. Thanks a lot.

I am loading my model into Gazebo using a script. Here is the relevant section from script:

 <link name="marker_link_2">
    <collision>
      ...
    </collision>

    <visual>
      <origin xyz="0 0 0" rpy="0 0 0"/>
      <geometry>
        <mesh filename="package://mono_bot/meshes/$(arg aruco_id)" scale="3 3 3"/>
      </geometry>
    </visual>

    <inertial>
     ...
    </inertial>
  </link>

I will Just replace the collada file with .obj file.


#16

I need a favor, can you convert this collada (https://3dwarehouse.sketchup.com/model/66932d70-999b-43fc-8e47-63646b6cb1cf/ArUco-with-white-borders) into an obj file. I cannot get sketchup8 (on ubuntu 16.04) to export obj file.


#17

OBJ exporter
https://extensions.sketchup.com/en/content/lipid-obj-exporter-sketchup
or
http://www.simlab-soft.com/3d-plugins/OBJ_Exporter_For_Sketchup-main.aspx


#18

I have installed the extension using the ruby package. When I click the obj export button in menu. Sadly, nothing happens


#19

Use SimLab OBJ Exporter: http://www.simlab-soft.com/3d-plugins/OBJ_Exporter_For_Sketchup-main.aspx
You have to find viable solutions, because someone else probably will not be able to turn your SKP files into OBJ anytime you need it.


#20

Thanks. Indeed what you say is true.

I have successfully installed the SimLab OBJ Exporter. It is however asking for a license. I have requested a trial license. I think it will take a while before I am able to export a obj file.
