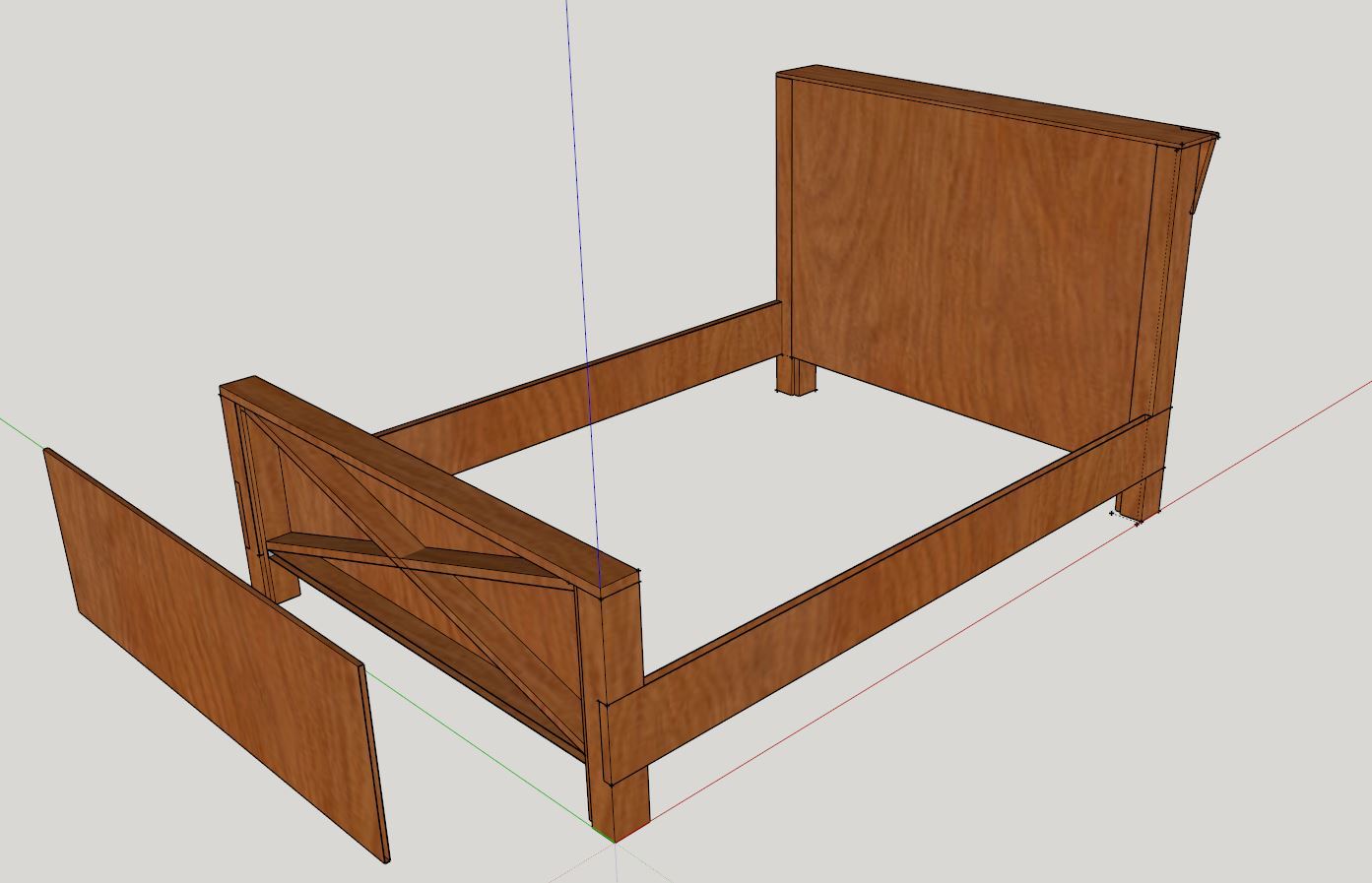

My first attempt at drafting schematics (drafting anything really) for some furniture I want to build. It is drafted to correct scale, and represent the near finished products. The dresser is designed to be attachable to the footboard of the bed using metal dowels. if anyone has any tips for manufacturing let me know. I have never taken a formal course in any type of CAD but did have a 2 week rotation in a multi-exposure technology course in middle school about 17 years ago. I’m pretty proud of it.

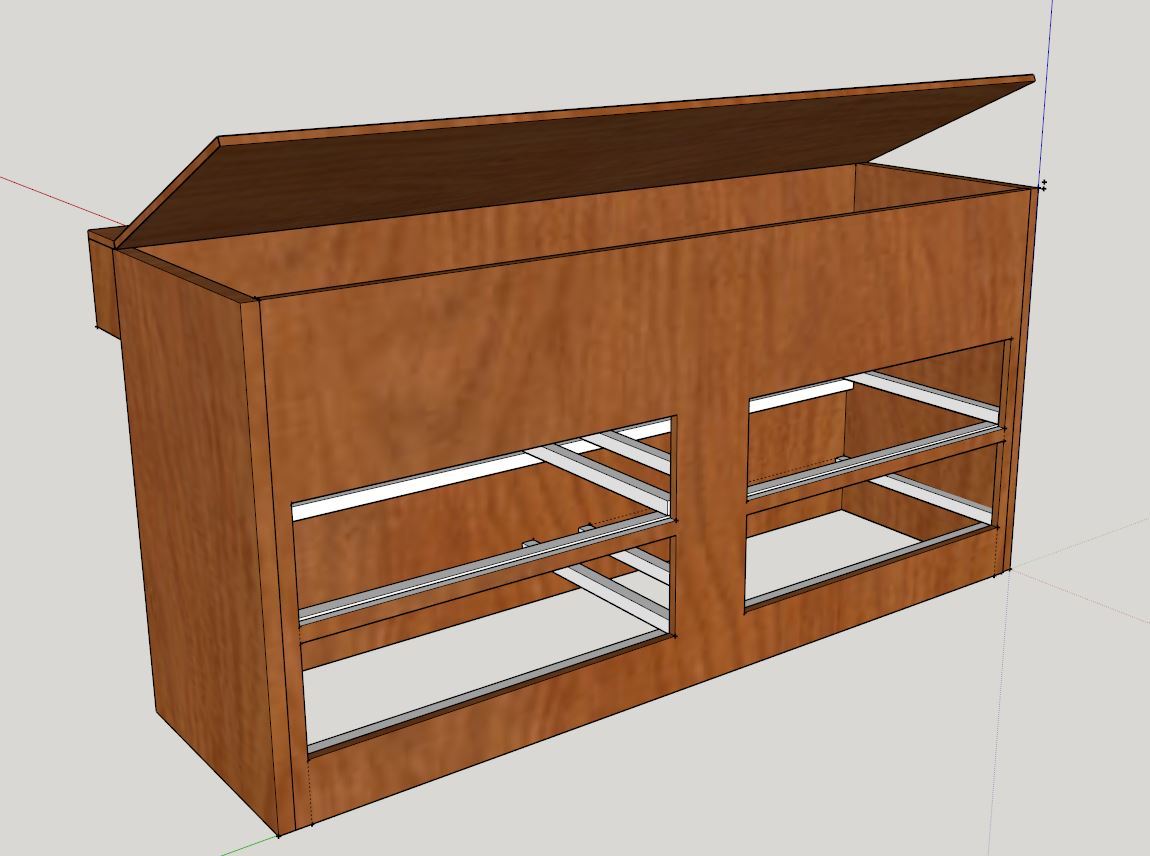

The Dresser will be in another post on this thread
