How to explode a curve face

alexey · September 17, 2019, 12:08am

How to explode a one curve face into separate planar faces using Ruby API?

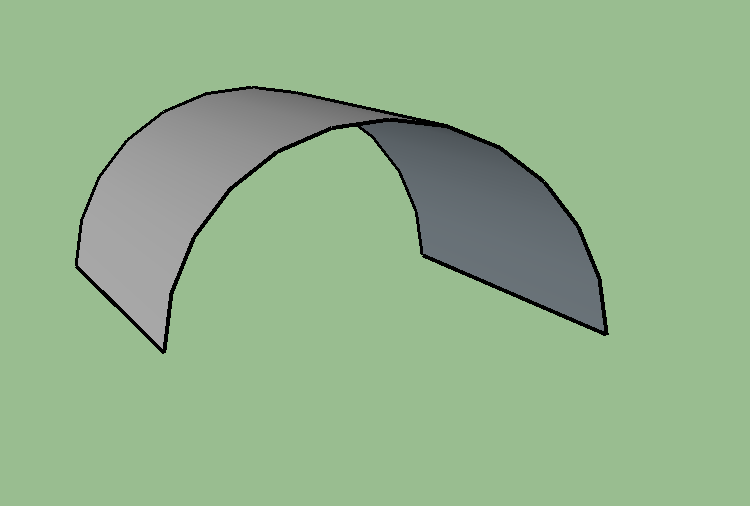

How to convert this:

into:

SKP: test1.skp (127.1 KB)

slbaumgartner · September 17, 2019, 12:15am

Curves don’t exist as such in SketchUp, they are always series of straight edges. The difference between your two images is just whether or not the soft/smooth edges are visible.

alexey · September 17, 2019, 12:17am

There is one more difference: I can’t select one separate face on the first image

@slbaumgartner is there any way to switch from the first image into the second using Ruby API?

thanks!

slbaumgartner · September 17, 2019, 12:23am

Gather the edges and turn off their soft and smooth properties.

alexey · September 17, 2019, 12:26am

@slbaumgartner thanks! It works

Sketchup.active_model.entities.grep(Sketchup::Edge).each do |edge|
  edge.soft = false
  edge.smooth = false
end

DanRathbun · September 17, 2019, 4:07am

And if it was selected …

Sketchup.active_model.selection.grep(Sketchup::Edge).each do |edge|
  edge.soft = false
  edge.smooth = false
end

DanRathbun · September 17, 2019, 4:10am

You CAN select single faces if you switch View > Hidden Geometry ON.
Then you do not need to unsoften/unsmooth the edges.
