Electric Motor, Fan, and Bell


#1

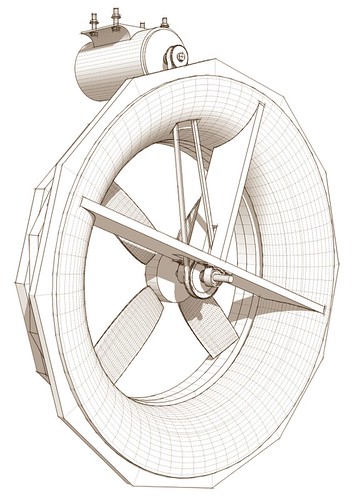

This is an old thing I drew up for a plan for a finishing booth. It’s an exhaust fan in a bell. This assembly mounts in a wall of the booth.


#2

That is so gorgeous! I love the contour on the bell and how the belt cuts through. Man, I hope I get that good someday!


#3

Thank you.

The original bell is made up of 2x framing lumber and is quite beautiful as a sculpture.
