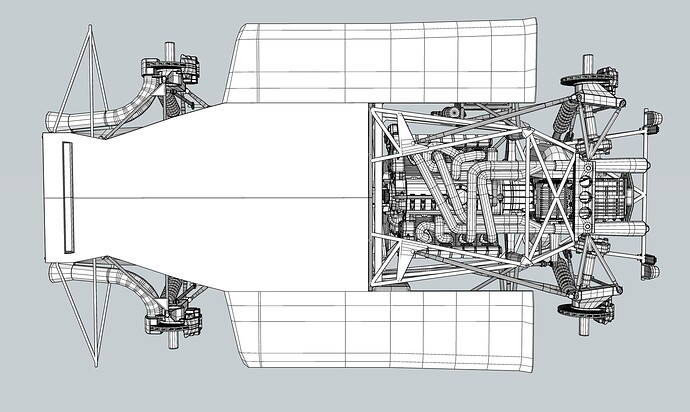

Tengel07's wip project: 1970 Porsche 908/03

The file with the engine has 20MB, the complete car has 52MB file size and subdivided the file size growing to 255MB.
I work since last year on this model from time to time, often i do rework of some geometry after founding new reference pics. I guess i spend roundabout 800h work on that model.
My plan is to make a 3d printed model in 1/8 scale.

2 Likes

Your dedication and perseverance is to be applauded.

2 Likes

The adventure begins… :astonished: :scream: :face_with_monocle:

3 Likes

Hi Tengel,
A question: why don’t you print it yourself? I seems that you could buy a printer for the price of just the complete engine…

with all those details, overhangs,… it won’t be a cheapprinter I guess

Why not? As you can see Tengel is printing parts as they would be made by Porsche.
Detail is ok as long as you don’t print to small. By printing every part separatly you can use a scale that is ok for the details. And for the overhangs you’ve got supports…

Edit: ofcourse the biggest part will define the maximum scale…

I let the profis print :stuck_out_tongue_winking_eye:
There are so fine details - that requires a resin printer… smell, handling…
Finally it is a test print, i plan to print all parts in resin in china for a small price.

3 Likes

3d Test Print of the engine


Orignal engine
Sketchup model of the engine

12 Likes

great result, how big is the print?

Scale 1/8 - 80x80x40mm - printed by shapeways with laser sintered Nylon Polyamide 11.

2 Likes

I bet it is fantastic fun to hold in your hand an accurate model of your favorite subject, that you created!

2 Likes

Very nice, I agree this level of detail would be hard to achieve with a cheap printer!

2 Likes

After a long break due starting a new job i could find some time to continue my work on the 908/3.

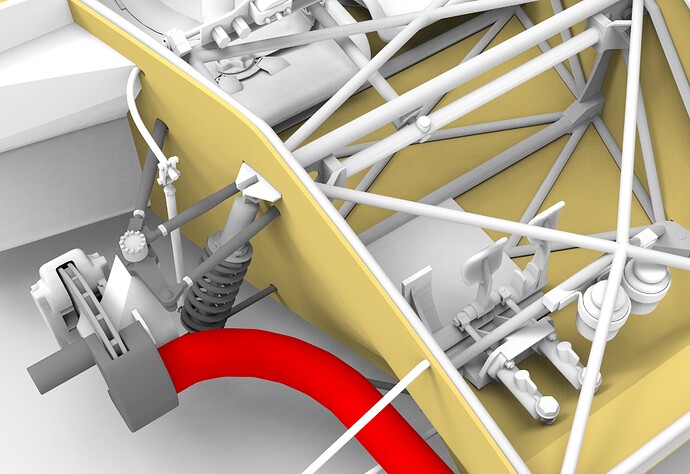

Pedal-Area + Break-Fluid-Reservoir added.
2 Break-Cylinder used - one for each axle. Each cylinder use its own reservoir.


Electrical components added:
from left: Ignition coil, battery, control box, 2 ignition systems - each cylinder has 2 spark plugs.

Render of the current work progress - it comes slowly to the end of the road :slight_smile:


Cheers
Torsten

11 Likes

Framework :crazy_face: :scream:
Pipes pipes pipes…

Left: Porsche 917K, right Porsche 908/3

8 Likes

Meanwhile in the light mode universe :rofl: :scream: made under use of 3 daylight led panels :crazy_face:

Gearbox redesign done - The housing is not symmetrical. Lots of cooling fins, bolts and nuts attached.

redesign of the Drive shaft with subd - Rubber-disc shape and universal joints reworked according to original photos.


Quick render shot…

Cheers
Torsten

13 Likes

Such a pleasure to see.

1 Like

Detail work in progress.
revesed intake manifold

How the flat slider valve throttle control works:


A slider with drillings is moved by a (here not visible) mechanic, wire driven by the throttle pedal. The slider open or close the flow of the mixture of air and fuel.

8 Likes

Beautiful work, I’ve been searching for a 908/3 3D model to play with. Will you be offering this for sale when you’re done?

Starting point October 2019



2 Years work - i learned a lot about using sketchup.
collecting tons of reference pictures and now it comes to the finish line



Cheers
Torsten

12 Likes

Breathtaking absolutely breathtaking! :+1::+1::+1:
