Seats done in quadfaces for subd - the ‘passenger’ seat is smaller to save weight - the car must have 2 seats according to the Reglement.
Front suspension design started, upper wishbones done incl. Steering.
Cheers
Torsten
9 Likes
Spaceframe design work.
Most of the tubes are positioned.
I have to figure out another shape to replicate the welds.
Cheers Torsten.
2 Likes
Nice.
You could do welds with texturing apps like substance painter:
“rolling chassis” progess so far.
meanwhile i reworked and adjusted the car body with the help of new pictures and Vertex-Tools and Quadface-tools - makes the work much easier.
front: new body - rear old body
top old body, bottom new body - front section adapted and redrawed, rear section height increased
Subd applied on body and tires.
Photo of a real car - gives a good view about the size of the car.
Cheers
Torsten
5 Likes
Designing brake disk.
2 segments with holes and ‘quadfaced’ - green color indicates all faces are quads.
Rotate and copy the 2 segments 9 times for a full disk
Plugin JointPushPull used to add thickness
Subd applied
Inner vane design
rotate and copy the vane 19 times
Brake disc component copied
Subd applied
Front suspension still wip
Next reply will show the caliper design progress.
Cheers
Torsten
7 Likes
A step back and redraw the brake disk

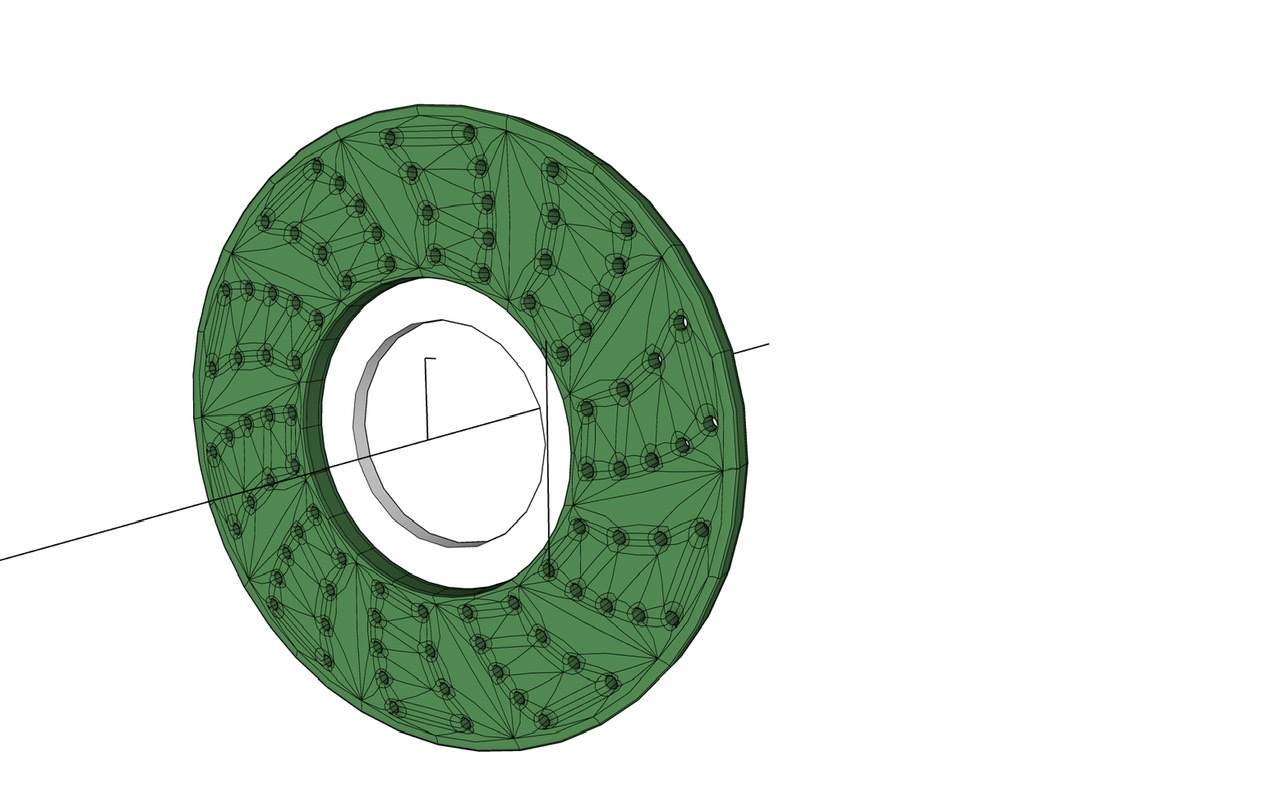

First “try”
New design - quad faces more square and no distortions
“Old” and new quad design
Cheers
Torsten
5 Likes
Ho ho ho - merry christmas
6 Likes
This is going really well keep it up, I’d love to try and render it when you are done if that’s acceptable!
Have a good Christmas!
1 Like
New year starts with some redesign work. I found some very useful and also large detail pics of the engine and decided to redraw the main parts of my engine design.
I split the main engine body in 3 sections for more flexibility of using quads and subd.
Middle section
Front section
Rear section
The sections contains different groups and components - most of them already made with quads.
Now i can subdivide each single part and do not need tons of lines to get them aligned as quads.
The new engine
Top view
Bottom view
4 Likes
Hi @tengel07
Absolutely brilliant work!
Apologies, but if I could just ask a quick question about the use of SubD.
How do you make sure that the component is the correct final size after running SubD? For example, when you did the Brake Disks, how do you make sure they are the correct diameter when SubD has finished?
Kind regards
Mike
1 Like
Hi @MichaelSiggers,
i did inital some testings with subd to get the scale factors for the proxy geometry.
The scale factor for the proxy depends on the segments of the circle and on the applied subd iterations.
Cheers
Torsten
2 Likes
Good point - thats now part of my workflow
- thanks for the tip.
1 Like
Thank you Torsten for the explanation.
Really appreciated.
Mike
Small Update:
2 of 3 Reservoir added
Frame repositioned
Driver seat incl. mount frame added
Panels around the cockpit and front frame added
Cheers
Torsten
3 Likes
Progress report
Panels around the cockpit done.
Steering system done
Dashboard design in progress
Cheers
Torsten
10 Likes
Gulf == Baby?
