Hey guys,
I’m trying to find a way to calculate the area of the shadow / shade on a surface or walkway to ensure that the design is compliant with the minimum shading percentage requirement. I tried all of the shadow analysis plugins but couldn’t find what I need. Does anyone know of a way to do this?
Thanks.
1 Like
hello, the easiest would be to roughly draw over the shadow to get a surface that would be quantifiable.
Speaking of plugins, for more complex shapes, 1001shadows ( 1001shadows) is able to draw shadows on ground for each time or day for a given interval. I haven’t tried it recently though, not sure it’ll work with 2021
thanks @paul.millet. I am working at a masterplan level so it will take a very long time to draw the total shadow. I’ll checkout 1001 shadow. Thanks!
1 Like
I’d also recommend Tig’s Shadow Projector - which is free but you have to set the time/day manually so if you have a lot to do, 1001shadows could be worth the cost.
5 Likes
thanks @eric-s! I’ll check it out.
1 Like
It works well! There is ‘Shadow Colour’ by agile from. But is tres-expensive!! If budget is a concern try the 1001bit shadow.

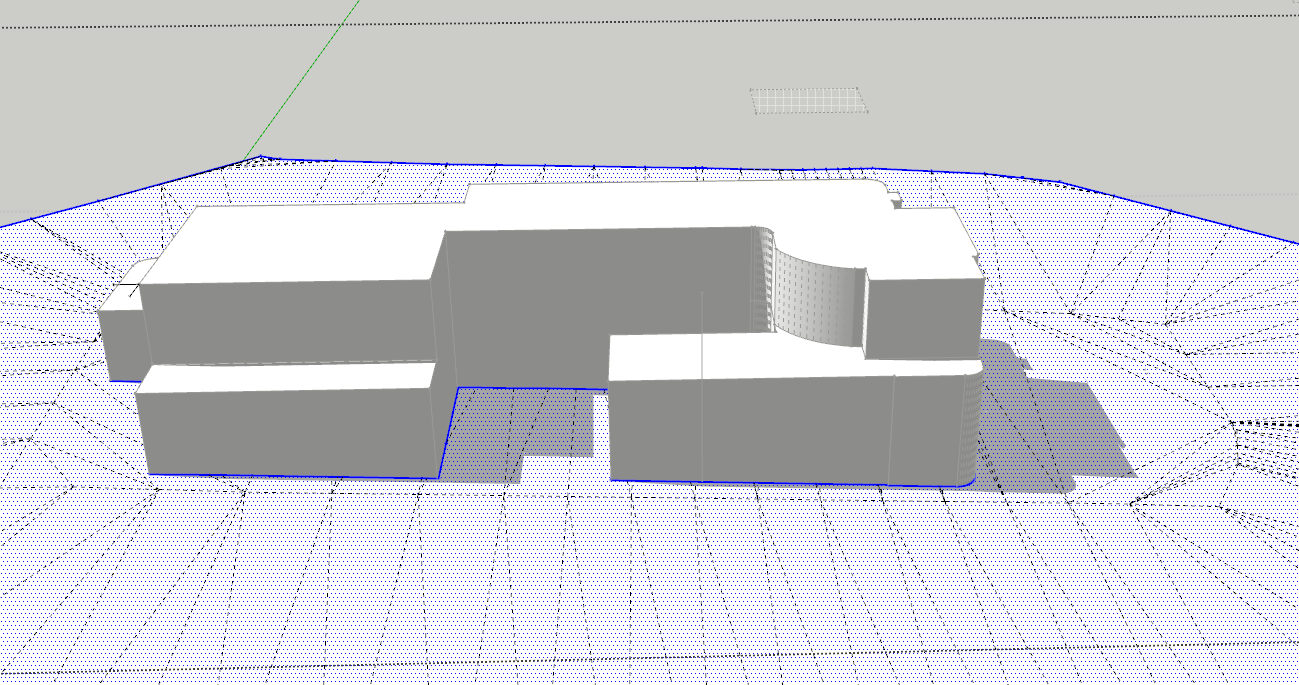

I tried this on a sloping land base on a survey, and it bug splat.
I’ll test it and see if I can replicate your problem and get back to you.
