Hello, My name is Leif, for an upcoming assignment we have to add an “continuous” angle onto to a cylinder, I’ve tried to figure it out but to no avail, any advice, thanks in advance!
(Here is the angle cut that is requested)
Hello, My name is Leif, for an upcoming assignment we have to add an “continuous” angle onto to a cylinder, I’ve tried to figure it out but to no avail, any advice, thanks in advance!
(Here is the angle cut that is requested)

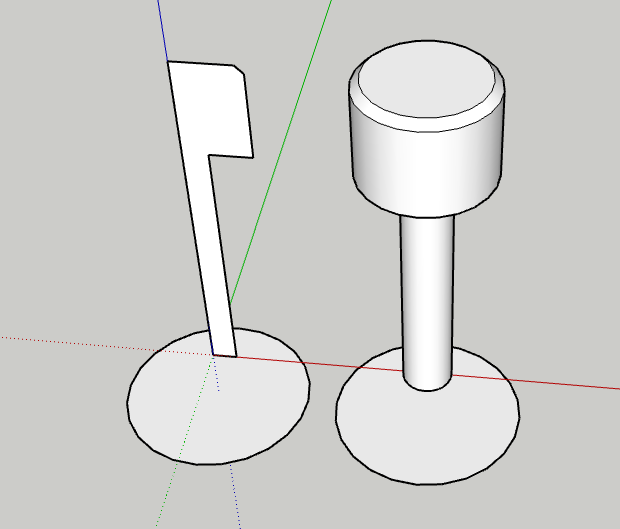

Use Follow Me to draw a a cross section profile of the part including the chamfer and a circle as a path.

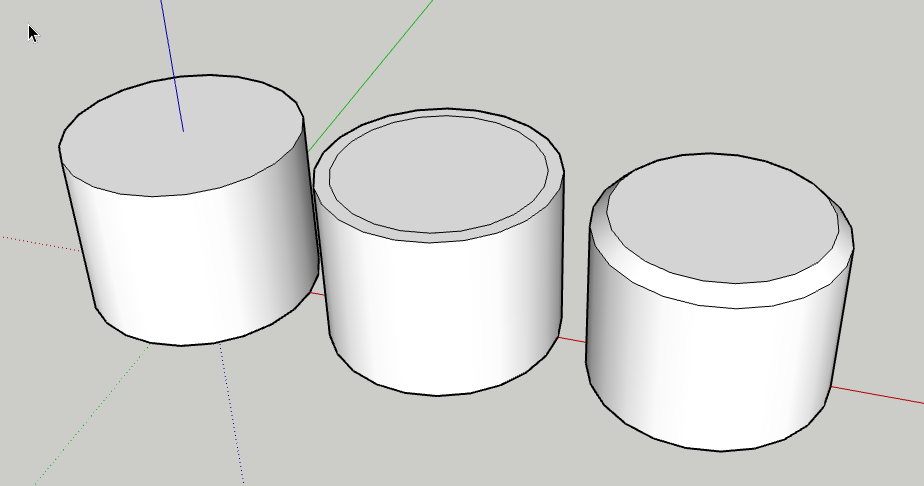

Alternatively, use Offset to ceate an offset edge 1/16 in. in from the outside edge. Then use Autofold with Move (Alt to activate Autofold.
to move the edges down.
Thanks so much, I was able to get it to work!
Thanks again!!
