Stuck in Wire frame after cad file drape

#1

Hi, I have just learnt how to geo locate, import terrain and drape a cad file onto the terrain.
However my model is now stuck in wireframe and does not respond to the face style commands.
Could this be an easy fix?

0 Likes

#2

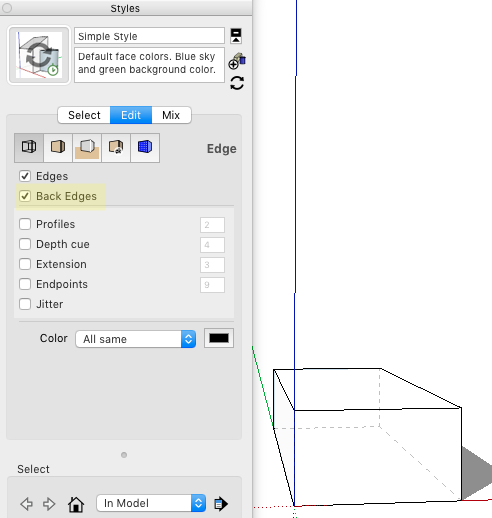

If they’re dashed lines, then maybe try unchecking back edges.

0 Likes

#3

It could be an easy fix but it might not be, too. Can you share the file? Generally 2D CAD files don’t import with faces.

0 Likes

#4

Thanks for replying…
The file is too big to upload. I’ve cleaned it up and made components of all I can, but still to large. I think you are right about the CAD file having no faces though.
Suspect I will have do do more CAD training before I can move forward!

0 Likes

#5

Hi, Back edges wasn’t checked. Think I’ve just got a lot more learning to do!
Thanks for your response.
