13 Likes
I remember when you helped me learn to draw the cabriole legs!
1 Like
Is this one you’re actually building?
Not now. My shop tools are in long term storage for a while.
I originally did the model for shop drawings.
Another little 2-cylinder engine with a pair of duplex watter pumps. As usual, a bunch of screws still to add.
9 Likes
Doodling while waiting for my bride. An idler sprocket for #40 roller chain.
13 Likes
Doodling while thinking about a current forum thread.
5 Likes
Nice. In the actual examples I have noticed the Braille text is quite small, probably to allow for reading similarly like in a book.
Yes. I made the other text small so the Braille dots would actually be visible. The Braille is modeled based on the information the OP provided in his thread, though.
I am so glad that sooooooo many people appreciate you! In one post it may be your SketchUp knowledge and skills, the next might be your answering somebody’s question in the middle of the night, and then it might be some steam doo-hickey, and usually a good dose of dry humor. You’ve made my life better. And, in one of your posts, simplicity was mentioned; Einstein said, " Things should be as simple as can be, but no simpler." I hope you get your tools out as soon as you need them. Thanks DaveR!
1 Like
Thank you very much! I appreciate that.
A quickie before a student this morning.
I guess you can see what it is in the drawing.
11 Likes
Monkeying around with animation export from Vray.
Footplate Animation2
Materials as in SU2025, not editing of them in Vray.
I didn’t find much useful info that showed how to make the export using the current Vray version so I blundered my way through it.
10 Likes
14 Likes

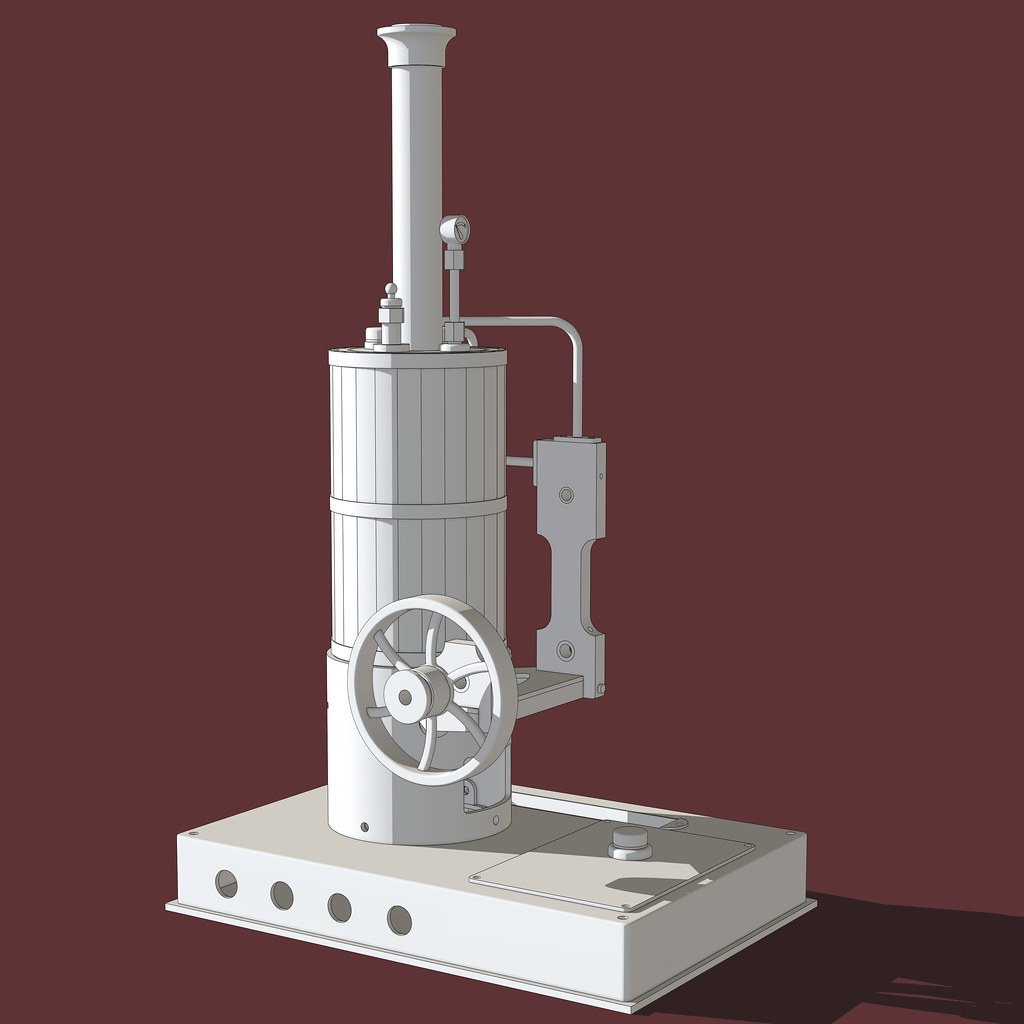

After a little break I decided to model another little steam engine. This is a little oscillator with a boiler. Still a few parts to model.
11 Likes
11 Likes
Another 3D printing project.
The rings were done in PETG and the center tube in TPU.
9 Likes
Lets see the finished product then
10 Likes
Nice work, what is your setup for TPU? also what printer are you using?
What is the purpose for this section?
